TPE Insulated Electric Vehicle Cable New Energy , EV Electric Car Charger Wiring

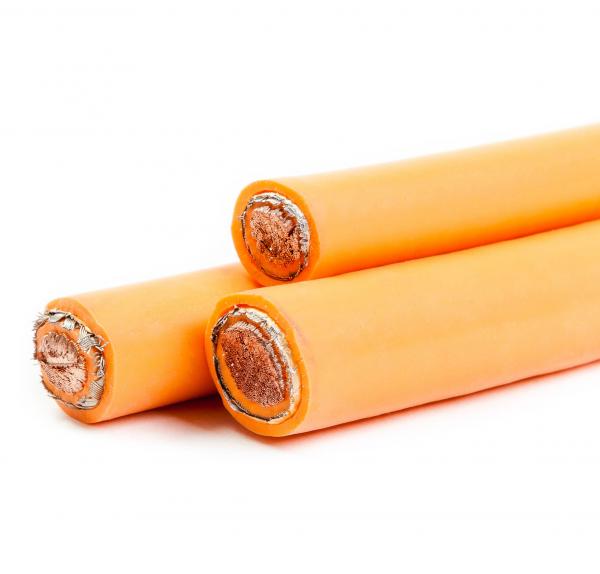

TPE Insulated Electric Vehicle Cable New Energy , EV Electric Car Charger Wiring image
Brand Name :
JHY CABLE
Model Number :
RTTZ,BTTZ,YTTW，JHYFH
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Model :
EV
Conductor :
High Purity Copper wire, class 5
Insulation :
XLPE, TPE
Sheath :
TPU
Color :
orange, red ,customized
Application :
Electric Vehicle Charger Cable
EV charging cable copper wire TPE insulated electric vehicle new energy cable
1. Constructure
| Conductor | Annealed copper wire, strand, Class 5, meets to GB/T 3956, IEC 60228, BS6360. |
| Insulation | TPE |
| Sheath | TPU |
| Shielded | Tinned copper wire |
| Standard | GB/T 12528, UL 62, CQC 1104, TUV 2 pfg 1908 |
| Working temperature | -40℃~+150℃ |
| Rated voltage | 600V |
2. Technical parameters
|
Nominal cross-section (mm2) |
Structure (No./mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
O.D. (mm) |
| 0.5 | 20/0.18 | 0.5 | 0.5 | 3.5 |
| 1.25 | 50/0.18 | 0.6 | 0.5 | 4.2 |
| 2 | 37/0.26 | 0.6 | 0.5 | 4.6 |
| 3 | 58/0.26 | 0.7 | 0.5 | 5.2 |
| 5 | 98/0.26 | 0.8 | 0.5 | 6.1 |
| 8 | 7/22/0.26 | 0.8 | 0.5 | 7.4 |
| 10 | 7/27/0.26 | 1.0 | 0.8 | 9.1 |
| 12 | 7/34/0.26 | 1.0 | 1.0 | 10 |
| 15 | 19/14/0.26 | 1.1 | 1.0 | 10.6 |
| 20 | 19/20/0.26 | 1.1 | 1.0 | 11.8 |
| 30 | 19/29/0.26 | 1.4 | 1.0 | 13.7 |
3. Features
- High peformance of load stress& thermal stress,pass 2PfG 1908 vheicular load test ,high
- temperaure and pressure test ,crack-resistant test.
- Suoerfine mechanical strength ,sheath tensile strength u to 25 Mpa,whole cable passes
- 2PfG 1908 mechanical tests.
- Good oil-resistant property,god environmental resistance.
4. Application
Used in electric vehicle charging equipments or charging ports, vehicle charge and discharge warning and control system with charging saturation, security warning control signal transmission function.
5. Product Image
Product Package
6. Product standard
GB/T 12528, UL 62, CQC 1104, TUV 2 pfg 1908.
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
