Mainly Application:

Use to guide through confined spaces such as wall cavities in the building,which is an ideal tools for electric wire laying.

The Rod:

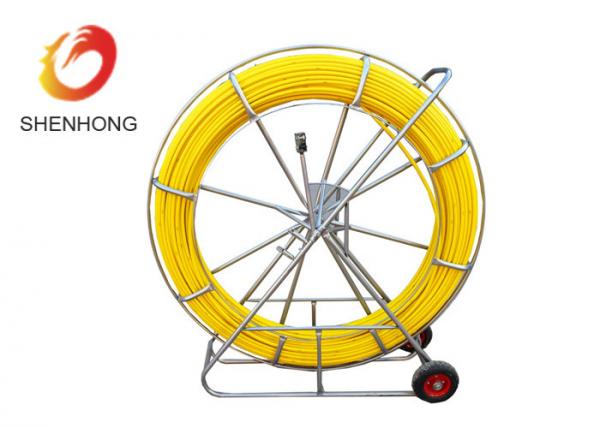

The rod of portable duct rodder diameter is 4.5mm or 6mm and the length is from 20m to 350m.There are meter marks on the protect layer of the rod which can be used for measuring diatance.Marks are printed by professional pronting machine,which has the advantage of strong adhesion,clear writing,waterproof,anti-ultraviolet,it can be still clear even after using many times.

The Frame:

Frame size:50cm*40cm*15cm;67cm*55cm*16cm;76cm*66cm*16cm

Frame are also a feature of the duct rodder systems.The rod will be equipped with different size frame according to the length.

The Features:

1. Light weight, durable, good resistance to chemical and corrosion.

2. High tensile strength and bending properties to make it go through narrow pipes easily.

3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature

4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.

5. meter marks: available

6. Rod colors: yellow, other colors are optional

7. Rod Length (m): 50-150m

8. Rod Diameter: 4mm-6mm

Specification

Popular Size Of Fiberglass FRP Push Pull Rod
