transmission and distribution line ACSR Bare Aluminum Conductor 336 mcm ACSR cable wire

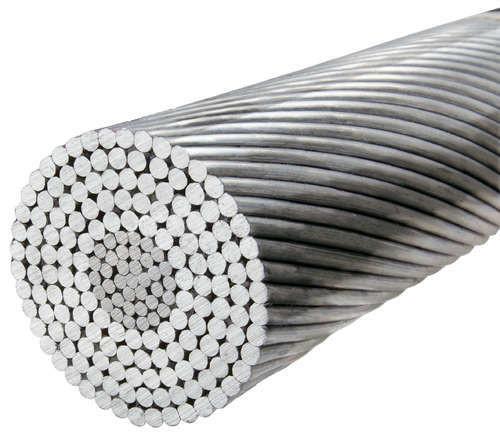

transmission and distribution line ACSR Bare Aluminum Conductor 336 mcm ACSR cable wire image
Brand Name :
Sanwu
Model Number :
ACSR
Certification :
TUV
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiate
Supply Ability :
200 tons per day
Packaging Details :
Non returnable wooden / steel reels
Delivery Time :
1-15days
Materials :
1350 Alloy
Application :
Cable construction
Type :
LV
Rates :
0.6/1kv
Standard :
IEC
Leading Supplier of ACSR Conductor with Low Price
AACSR is concentrically stranded conductor with one or more layers of aluminum alloy wire on galvanized steel wire core. The core can be single wire or stranded depending on the size.
Applications – Overhead transmission and distribution lines Medium, High and Extra High voltage .Specially recommended in corrosive environments, crossings , or where a very high U.T.S. is needed.
Capacity – We can manufacture 61 strands conductor, 500kms per month & 7 Strands – 5000kms per month.
| Code Number | Steel ratio | Area | Number of wires | Wire diam | Diameter | Linear mass | Rated strength | D.C. resistance | |||||
| Alum, | Steel | Total | Al | St. | Alum. | Steel | Core | Cond. | |||||
| % | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | Ohm/km | |||
| 16 | 17 | 18.6 | 3.1 | 21.7 | 6 | 1 | 1.99 | 1.99 | 1.99 | 5.96 | 75.1 | 9.67 | 1.7934 |
| 25 | 17 | 29 | 4.84 | 33.9 | 6 | 1 | 2.48 | 2.48 | 2.48 | 7.45 | 117.3 | 14.96 | 0.1478 |
| 40 | 17 | 46.5 | 7.75 | 54.2 | 6 | 1 | 3.14 | 3.14 | 3.14 | 9.42 | 187.7 | 23.63 | 0.7174 |
| 63 | 17 | 73.2 | 12.2 | 85.4 | 6 | 1 | 3.94 | 3.94 | 3.94 | 11.8 | 295.6 | 36.48 | 0.4555 |
| 100 | 6 | 116 | 6.46 | 123 | 18 | 1 | 2.87 | 2.87 | 2.87 | 14.3 | 369.9 | 45.12 | 0.288 |
| 125 | 6 | 145 | 8.07 | 153 | 18 | 1 | 3.21 | 3.21 | 3.21 | 16.0 | 462.3 | 56. 08 | 0.2304 |
| 125 | 16 | 145 | 23.7 | 169 | 26 | 7 | 2.67 | 2.07 | 6.22 | 16.9 | 585.4 | 74.88 | 0.231 |
| 160 | 6 | 186 | 10.3 | 196 | 18 | 1 | 3.63 | 3.63 | 3.63 | 18.1 | 591.8 | 69.92 | 0.18 |
| 160 | 16 | 186 | 30.3 | 216 | 26 | 7 | 3.02 | 2.35 | 7.04 | 19.1 | 749.4 | 94.94 | 0.1805 |
| 200 | 6 | 232 | 12.9 | 245 | 18 | 1 | 4.05 | 4.05 | 4.05 | 20.3 | 739.8 | 87.4 | 0.144 |
| 200 | 16 | 232 | 37.8 | 270 | 26 | 7 | 3.37 | 2.62 | 7.87 | 21.4 | 936.7 | 118.67 | 0.1444 |
| 250 | 10 | 290 | 28.5 | 319 | 22 | 7 | 4.10 | 2.28 | 6.83 | 23.2 | 1023.2 | 124.02 | 0.1154 |
| 250 | 16 | 290 | 47.3 | 338 | 26 | 7 | 3.77 | 2.93 | 8.80 | 23.9 | 1170.9 | 145.43 | 0.1155 |
| 315 | 7 | 366 | 25.3 | 391 | 45 | 7 | 3.22 | 2.15 | 6.44 | 25.7 | 1207.9 | 148.56 | 0.091 7 |
| 315 | 16 | 366 | 59.6 | 426 | 26 | 7 | 4.23 | 3.29 | 9.88 | 26.8 | 145.3 | 180.86 | 0.0917 |
| 400 | 7 | 465 | 32.1 | 497 | 45 | 7 | 3.63 | 2.42 | 7.25 | 29.0 | 1533.9 | 183.03 | 0.0722 |
| 400 | 13 | 465 | 60.2 | 525 | 54 | 7 | 3.31 | 3.31 | 9.93 | 29.8 | 1754.9 | 217.32 | 0.0723 |
| 450 | 7 | 523 | 36.1 | 559 | 45 | 7 | 3.85 | 2.56 | 7.69 | 30.8 | 1725.6 | 205.91 | 0.0642 |
| 450 | 13 | 523 | 67.8 | 591 | 54 | 7 | 3.51 | 3.51 | 10.50 | 31.6 | 1974.2 | 239.26 | 0.0643 |
| 500 | 7 | 581 | 40.2 | 621 | 45 | 7 | 4.05 | 2.70 | 8.11 | 32.4 | 1917.3 | 228.79 | 0.0578 |
| 500 | 13 | 581 | 75.3 | 656 | 54 | 7 | 3.70 | 3.70 | 11.10 | 33.3 | 2193.6 | 265.84 | 0.0578 |
| 560 | 7 | 651 | 45 | 696 | 45 | 7 | 4.29 | 2.86 | 8.58 | 34.3 | 2147.4 | 256.24 | 0.0516 |
| 560 | 13 | 651 | 82.4 | 733 | 54 | 19 | 3.92 | 2.35 | 11.80 | 35.3 | 2444.0 | 298.92 | 0.0516 |
| 630 | 4 | 732 | 31.6 | 764 | 72 | 7 | 3.60 | 2.40 | 7.20 | 36.0 | 2269.4 | 266.64 | 0.0459 |
| 630 | 13 | 732 | 92.7 | 825 | 54 | 19 | 4.15 | 2.49 | 12.50 | 37.4 | 2749.5 | 336.28 | 0.0459 |
| 710 | 4 | 825 | 35.6 | 861 | 72 | 7 | 3.82 | 2.55 | 7.64 | 38.2 | 2557.6 | 300.5 | 0.0407 |
| 710 | 13 | 825 | 104 | 929 | 54 | 19 | 4.41 | 2.65 | 13.20 | 39.7 | 3098.6 | 378.98 | 0.0407 |
| 800 | 4 | 930 | 40.2 | 970 | 72 | 7 | 4.05 | 2.70 | 8.11 | 40.5 | 2881.8 | 338.59 | 0.0361 |
| 800 | 8 | 930 | 77.5 | 1007 | 84 | 7 | 3.75 | 3.75 | 11.30 | 41.3 | 3175.1 | 378.01 | 0.0362 |
| 900 | 4 | 1046 | 45.2 | 1091 | 72 | 7 | 4.30 | 2.87 | 8.60 | 43.0 | 3242.0 | 380.91 | 0.0321 |
| 900 | 8 | 1046 | 87.1 | 1133 | 84 | 7 | 3.98 | 3.98 | 11.90 | 43.8 | 3572.0 | 425.26 | 0.0322 |
| 1000 | 8 | 1162 | 94.6 | 1257 | 84 | 19 | 4.20 | 2.52 | 12.60 | 46.2 | 3954.1 | 473.86 | 0.0289 |
| 1120 | 8 | 1301 | 106 | 1407 | 84 | 19 | 4.44 | 2.66 | 13.30 | 48.9 | 4428.6 | 530.72 | 0.0258 |
Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
We are China transmission and distribution line ACSR Bare Aluminum Conductor 336 mcm ACSR cable wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
