Transmission Line Stringing Tools Self Grip Insulated Wire Rope For PVC Cable

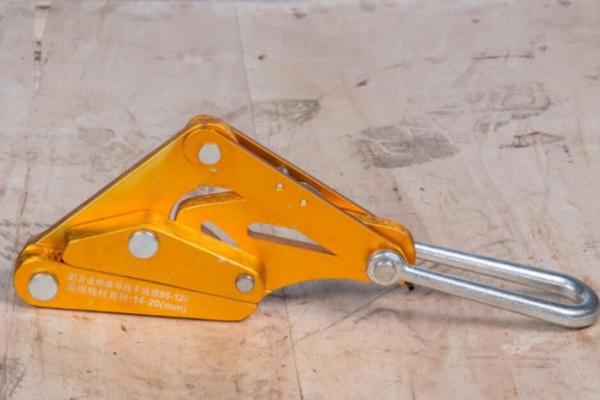

Transmission Line Stringing Tools Self Grip Insulated Wire Rope For PVC Cable image
Brand Name :
Suntech
Model Number :
SKJL
Certification :
ISO CE
Place of Origin :
Ningbo,China
MOQ :
1pcs
Price :
Get the lastest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
5-8 workdays
Packaging Details :
Exported Wooden Case
Name :
Conductor Gripper
Advantage :
Light Weight
Rated Load :
5~20 KN
Material :
Aluminum
Application :
Overhead Line
Certificaitons :
ISO
Insulated Wire Rope Self Gripping Clamp Line Stringing Tools For PVC Cable
Self Gripping Clamp Spec
Insulated wire rope self gripping clamp is quite useful in the power operation site, it has the 5,10,15,20 classify rated load, to suit the applicable wire from 6 diameter to 29 diameter, max gap can uop to 31mm, the whole set material is made by the 100% standard first grade aluminum alloy, the best top raw material we applied, you can feel assure the strenght quality, and durable features.
In the plant, to meet the more demands on the site operation, we have the bolt tpe round steel rope gripper, and anti twist steel rope gripper, insulated conductor gripper…etc. also there is a radial locking grip to support the fiber optical cable stringing site.
Here is the detailed self gripping clamp technical information.
| Order number | Model | Rated load (kN) | Diameter of applicable wire | Maximum gap (mm) | Weight (kg) | Remark |
| 13182 | SKJL-0.5 | 5 | Φ6~Φ10 | 12 | 1.0 | Aluminum alloy |
| 13192 | SKJL-1 | 10 | Φ10~Φ14 | 15 | 1.4 | Aluminum alloy |
| 13202 | SKJL-1.5 | 15 | Φ14~Φ20 | 22 | 3 | Aluminum alloy |
| 13212 | SKJL-2 | 20 | Φ20~Φ25 | 27 | 4.0 | Aluminum alloy |
| 13213 | SKJLA-2 | 20 | Φ25~Φ29 | 31 | 4.0 | Aluminum alloy |
A cable grip is a device for propelling a vehicle by attaching to a wire cable (also called wire rope) running at a (relatively) constant speed. The vehicle may be suspended from the cable, as in the case of aerial lifts such as a gondola lift, may be guided by rails, as in a cable traction railway, or may be self-guiding, as in a button lift. Typically, multiple vehicles will use the same cable; where just one or two vehicles are in use they will tend to be attached to the cable permanently (e.g. funiculars).
More infomation show
Insulated Wire Rope Self Gripping Clamp Line Stringing Tools For PVC Cable
We are China Transmission Line Stringing Tools Self Grip Insulated Wire Rope For PVC Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aluminum Self Grip Clamp, come along clamp, Insulated Wire Rope 20KN Self Grip, Transmission Line Stringing Self Grip ClampFAST AND RELIABLE SERVICE FOR YOUR PROJECT
