Tubular Steel Telecom Tower With Hot Dip Galvanized And Brackets

 China Tubular Steel Telecom Tower With Hot Dip Galvanized And Brackets supplier

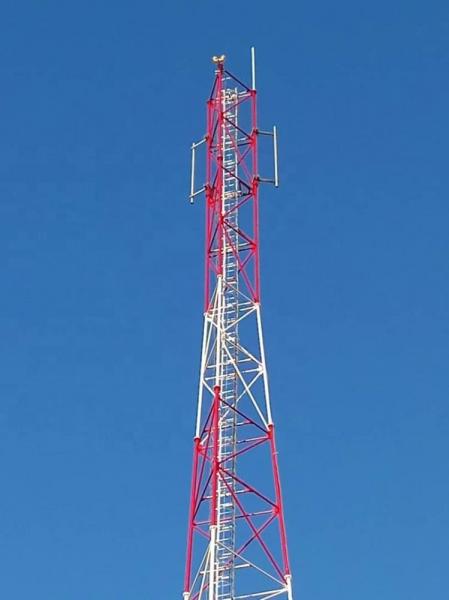

Tubular Steel Telecom Tower With Hot Dip Galvanized And Brackets image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Steel Telecom Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
60000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after payment

Packaging Details :
Exported Containers

Product Name :
Steel Telecom Tower

Material :
Steel Q235,Q345,Q420

Height :
10-120M

Surface Treatment :
Hot Dip Galvanized

Wind Speed :
100~160km/h_3 second gust

Lifetime :
20-30 years

Tubular Telecommunication Steel Telecom Tower With Hot Dip Galvanized And Brackets

We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.

Our Product Range:

Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.

Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients

FAQ:

1. Are you a manufacturer or a trading company?

We are a professional electrical manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.

2. Do you offer free samples?

We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.

3. Do you accept our design on products or boxes?

Yes. We accept customized design and we have a professional design team who can design products based on your requirements.

4. How long is your delivery time?

Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.

Factory price

We are our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
