Underground Amoured Middle Voltage Power Cable 10KV 120mm2

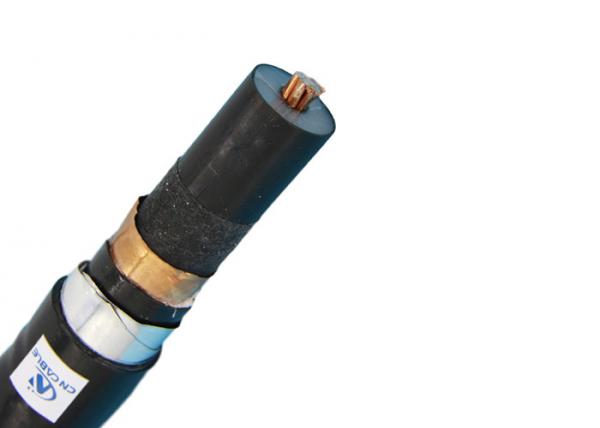

Underground Amoured Middle Voltage Power Cable 10KV 120mm2 image
Brand Name :
CN CABLE
Model Number :
MV CABLE
Certification :
IEC
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
20 days
Packaging Details :
wooden drum. iron-wooden drum
Name :
Middle Voltage Power Cable
Insulation :
XLPE
Screen :
Copper Wires and Copper Tape
amour :
Alumium amoured
Sheath :
Medium Density Polyethylene
Voltage :
10KV
Underground Amoured Middle Voltage Power Cable 10KV 120mm2
CONSTRUCTION of Middle Voltage Power Cable
Conductor
AlConductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper Wires and Copper Tape
Amour
Aluminum wire
Sheath
MDPE (Medium Density Polyethylene)
CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
10KV (6/10KV)
Sheath Colour
Red
Middle Voltage Power Cable Parameters
| Underground Amoured Middle Voltage Power Cable 10KV 120mm2 | ||||
| Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | mm | mm | kg/km |
| 95 | 3.4 | 1.8 | 25.9 | 691 |
| 120 | 3.4 | 1.8 | 27.3 | 792 |
| 150 | 3.4 | 1.8 | 28.7 | 906 |
| 185 | 3.4 | 1.9 | 30.7 | 1051 |
We are China Underground Amoured Middle Voltage Power Cable 10KV 120mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 10KV 120mm2 armoured power cable, 10KV Middle Voltage Power Cable, 120mm2 Middle Voltage Power Cable, mv power cableSimilar Or Related
