XLPE HDPE SAC 12KV 1Cx185sqmm Overhead Insulated Cable

 China XLPE HDPE SAC 12KV 1Cx185sqmm Overhead Insulated Cable supplier

XLPE HDPE SAC 12KV 1Cx185sqmm Overhead Insulated Cable image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
MV overhead insulated Cable SAC cable

Certification :
ISO 9001:2015,ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
1000meters

Price :
Negotiable

Payment Terms :
L/C, T/T,

Supply Ability :
80Km/Month

Delivery Time :
15-30 days

Packaging Details :
Wooden case, wooden-steel case, coil or plastic drumor customized

Name :
AL / SC / XLPE / HDPE SAC cable overhead insulated cable 12KV 1Cx185sqmm

structure :
AL / SC / XLPE / HDPE

Conductor Material :
Aluminum

Insulation Material :
XLPE

Outer sheath color :
Black

Application :
Overhead transmission use

Quality :
confirm to IEC60502-2

Standard :
ISO 9001:2015

AL / SC / XLPE / HDPE SAC cable overhead insulated cable 12KV 1Cx185sqmm

Description of AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm

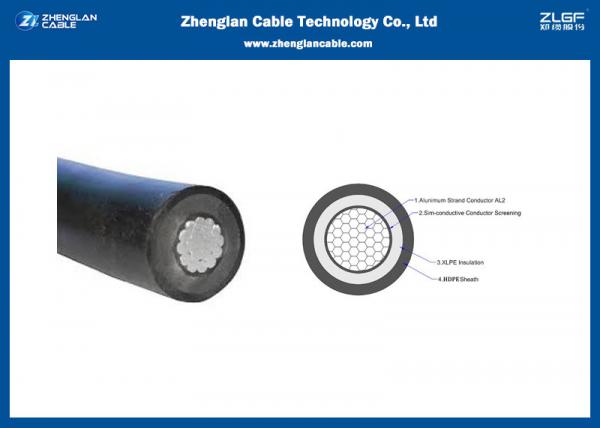

Construction: AL/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE
(4) Outer sheath: HDPE
Cable identification:
– Insulation: Natural color of XLPE
– Outer sheath: Black
AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm Characteristics:
– Rated voltage: 6.35/11(12)kV
– Max. conductor temperature in normal use: 90oC
– Min. bend radius: 8 x D (D: overall diameter of cable)

APPLICATION of AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm :
For used in primary aerial cable on pole.

Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA

AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm technical parameters with reference to IEC60502

Nominal cross sectional area Diameter of conductor Thickness of insulation Thickness of outer sheath Approx. overall diameter DC resistance of conductor at 20oC Approx. weight
Mm2 mm mm mm mm Ω/km kg/km
35 6.90 3.4 1.5 18.7 0.868 299
50 8.15 3.4 1.6 20.2 0.641 366
70 9.75 3.4 1.7 22.0 0.443 449
95 11.45 3.4 1.7 23.8 0.320 550
120 12.85 3.4 1.8 25.3 0.253 641
150 14.30 3.4 1.8 26.8 0.206 753
185 15.95 3.4 1.9 28.6 0.164 885
240 18.25 3.4 1.9 30.9 0.125 1,092

AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm images

AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm packages

About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.

Our main products are
overhead power transmission use bare conductor(ACSR, AAC, etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China XLPE HDPE SAC 12KV 1Cx185sqmm Overhead Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
