XLPE Insulate Aluminum Low Voltage ABC Cable 2×16 Duplex Service Drop Wire IEC60502-1

 China XLPE Insulate Aluminum Low Voltage ABC Cable 2×16 Duplex Service Drop Wire IEC60502-1 supplier

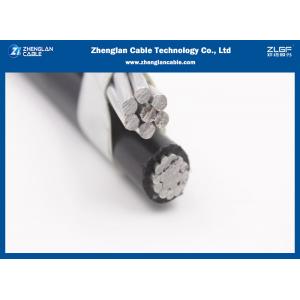

XLPE Insulate Aluminum Low Voltage ABC Cable 2×16 Duplex Service Drop Wire IEC60502-1 image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :0.6/1kv aerial insulated cable overhead insulated cable 1x50sqmm IEC60502-1
Certification :ISO 9001:2015,ISO 14001:2005; CCC
Place of Origin :Henan, China
MOQ :1000 meters
Price :Negotiable
Payment Terms :T/T, L/C, Western Union
Supply Ability :50,000 KM/Year
Delivery Time :5-10 days
Packaging Details :Wooden drum, iron wooden drum or as required
Insulation Material :XLPE or PVC
Conductor Material :Aluminum/Copper
Application :Overhead
Quality :100% test
Standard :GB/T 12527-2008, IEC60502-1
structure :AL/XLPE
Voltage :0.6/1KV
Port :Qingdao or Shanghai
Color :Blank
origin :China

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2×16 Duplex Service Drop Wire IEC60502-1 IEC60502-1

Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR), Copper

Insulation: PVC, XLPE, PE

GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.


Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building; from source to machine or device, in duct in the ground…

Below construction are also commonly used around the world.

A) Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

B) Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

It meets or exceeds the following specifications:

C ) Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

0.6/1kv aerial insulated cable overhead insulated cable 1x95sqmm IEC60502-1​ parameters

Nominal cross sectional area(mm²) Wire Minimum no. Conductor diameter(mm)

Nominal Insulation thickness


Single wire average nominal diameter maximum value(mm) Max. Conductor resistance at 20 ℃(Ω/km) Min insulation resistance at rated working temper(MΩ*km Single wire tensile strength(N)
Aluminum Aluminum alloy 70℃ 90℃ Aluminum Aluminum alloy
10 6 3.8 1.0 6.5 3.08 3.574 0.0067 0.67 1650 2514
16 6 3.8 1.2 8.0 1.91 2.217 0.0065 0.65 2517 4022
25 6 6.0 1.2 9.4 1.20 1.393 0.0054 0.54 3762 6284
35 6 7.0 1.4 11.0 0.868 1.007 0.0054 0.54 5177 8800
50 6 8.4 1.4 12.3 0.641 0.744 0.0046 0.46 7011 12569
70 12 10.0 1.4 14.1 0.443 0.514 0.0040 0.40 10354 17596
95 15 11.6 1.6 16.5 0.320 0.371 0.0039 0.39 13727 23880
120 15 13.0 1.6 18.1 0.253 0.294 0.0035 0.35 17339 30164
150 15 14.6 1.8 20.2 0.206 0.239 0.0035 0.35 21033 37706
185 30 16.2 2.0 22.5 0.164 0.190 0.0035 0.35 26732 46503
240 30 18.4 2.2 25.6 0.125 0.145 0.0034 0.34 34679 60329
300 30 20.8 2.2 27.2 0.100 0.116 0.0033 0.33 43349 75411
400 53 23.2 2.2 30.7 0.0778 0.0904 0.0032 0.32 55707 100548

0.6/1kv aerial insulated cable overhead insulated cable 1x95sqmm IEC60502-1 product images

0.6/1kv aerial insulated cable overhead insulated cable 1x95sqmm IEC60502-1 factory Images

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China XLPE Insulate Aluminum Low Voltage ABC Cable 2×16 Duplex Service Drop Wire IEC60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
