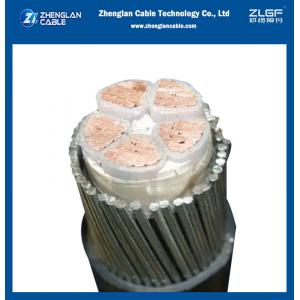

XLPE Insulated SWA Armored Copper Cable 5x16mm2 According To BS 5467 image

Get a Quote Email to us

XLPE insulated SWA Armored Copper Cable 5x16mm2 According to BS 5467

Application

XLPE insulated SWA Armored Copper Cable 5x16mm2 According to BS 5467 are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour

Operating characteristics

1.Cable laying temperature: ≥0°C

2.Cable conductor long-term allowable working temperature:≤90°C

3.Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

4.Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

XLPE material and thickness shall be as per IEC 60502-1, rated for 90℃ continuous operation

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

Standard

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706.2-2008

Other standards such as BS7870,DIN and ICEA upon request

Fire Resistant Cable Technical parameter

Conductor dimensions (mm2) nsulation thickness (mm) PVC bedding thickness(mm) Armored wire Outer diameter(mm) Sheath thickness (mm) Outer diameter (approximate) Copper core Cable weight (approximate) (Kg/km)
5C 5C 5C 5C 5C
1.5 0.7 1 0.8 1.8 16.1 445
2.5 0.7 1 0.8 1.8 17.2 528
4 0.7 1 1.25 1.8 19.4 782
6 0.7 1 1.25 1.8 20.7 929
10 0.7 1 1.25 1.8 23.8 1284
16 0.7 1 1.6 1.8 27.5 1831
25 0.9 1 1.6 1.8 31.3 2455
35 0.9 1 1.6 1.9 34.7 3096
50 1 1.2 2 2.1 40.1 4332
70 1.1 1.2 2 2.3 43.6 5448
95 1.1 1.4 2.5 2.5 49.5 7465
120 1.2 1.4 2.5 2.6 53.9 8986
150 1.4 1.4 2.5 2.8 59.5 10850
185 1.6 1.6 2.5 3 68.2 13220
240 1.7 1.6 3.15 3.3 74.2 17103
300 1.8 1.8 3.15 3.5 79.7 20414

XLPE insulated SWA Armored Copper Cable 5x16mm2 According to BS 5467 Productors show
