XLPE Insulation Solar PV Cable

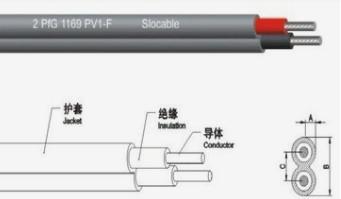

XLPE Insulation Solar PV Cable image
Brand Name :
CHINT
Model Number :
H1Z2Z2-K
Certification :
TUV
Place of Origin :
China
MOQ :
2000m
Price :
0.3~0.7USD/m
Supply Ability :
60000km per month
Packaging Details :
wooden or polywooden drum or rolls
condutor :
tinned anneal copper
insulation :
XLPE/XLPO
material color :
black or red
Rated voltage :
1500 VDC
Application :
Solar power system
Tinned Flexible Conductor XLPE/XLPO Cable With TUV Certiifcate
Producton discription
Chint cable has gotten TUV certificate with solar cable which designed by EN50618 standard. this kind of cable with
25 years old and UV resistant.we have exported this kind cable to many countries ,eg. Australia Brazil
Product Specification:
Product name:solar cable
Conductor Material:copper
Rated voltage:1500 VDC
Core:Single Core,Double Core,or Multi Core
Color:Red,Black
Jacket Material:XLPE
Temperature range:-40℃~90℃
Data sheet
|
Cross Section (mm²) |
Conductor Construction (n/mm) |
Conductor OD(mm) |
Cable OD(mm)
|
Insulation Min.Wall Thickness(mm) |
Sheath Min.Wall Thickness(mm) |
Current Araaing Capacity AT 60°C(A) |
| 1.5 | TXR30/0.25 | 1.58 | 4.90 | 0.67 | 0.73 | 30 |
| 2.5 | TXR50/0.25 | 2.02 | 5.45 | 0.67 | 0.73 | 41 |
| 4 | TXR56/0.30 | 2.60 | 6.10 | 0.67 | 0.73 | 55 |
| 6 | TXR84/0.30 | 3.42 | 7.20 | 0.8 | 0.80 | 70 |
Application:
Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions.Solar power system, PV,solar eara.
Advantage:
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V,oil,greases,oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant,low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carring capacity
We are China XLPE Insulation Solar PV Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
