XLPE Insulation Two Cores Concentric Cable 0.6 / 1kV For Power Distribution Network

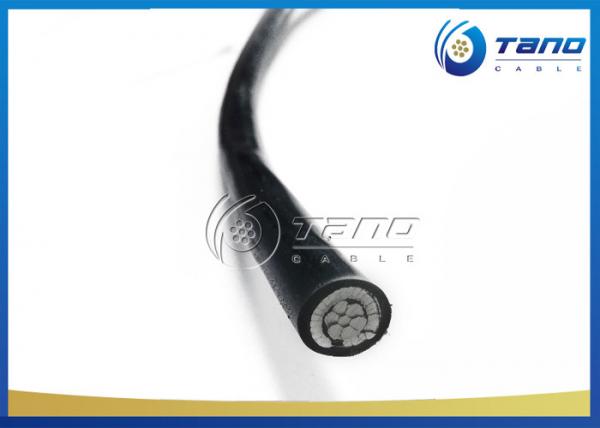

XLPE Insulation Two Cores Concentric Cable 0.6 / 1kV For Power Distribution Network image
Brand Name :
TANO CABLE
Model Number :
Concentric Cable
Certification :
ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100Km Per Month
Delivery Time :
7-20 Days
Packaging Details :
by wooden drums, rolls
Conductor :
Aluminum / copper
Insulation :
XLPE / PVC
Sheath :
PE/ PVC
Voltague :
0.6/1kV
name :
Concentric Cable
certification :
ISO
0.6 / 1kV two cores Concentric Cable 2 AWG 4AWG 6AWG 8AWG Aluminum and Copper
Description of concentric cable
Concentric cable consists of a plain annealed stranded copper phase conductor, an XLPE insulation surrounded by a concentric layer of plain annealed solid copper neutral conductors, an XLPE insulated and plain annealed solid strand bare copper earth conductors and a black PVC outer sheath.
Application of Concentric Cable
Concentric cables are commonly used for power distribution network, ammeter panel, instrument or circuit panel, which can be laid directly underground or outdoors and even applicable in dry and wet conditions.
Standard of Concentric Cable
IEC 61089 IEC 60502
Parameter of Concentric Cable
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | Approx.Weight | ||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km | kg/km | kg/km |
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
Construction of Concentric Cable
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation: XLPE
3. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4. Binder Tape: Polyester Tape or Semi-conducting Tape
5. Outer Sheath: XLPE
Voltage:600/1000v Bending Radius: Single core: 20D ± 0.05, multi-core: 15D ± 0.05 Temperature Rating: 0°C to 70°C
We are China XLPE Insulation Two Cores Concentric Cable 0.6 / 1kV For Power Distribution Network manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
