YJLV22 NA2XRY Al 2 Core Low Voltage Cable Steel Tape Armoured Cable

 China YJLV22 NA2XRY Al 2 Core Low Voltage Cable Steel Tape Armoured Cable supplier

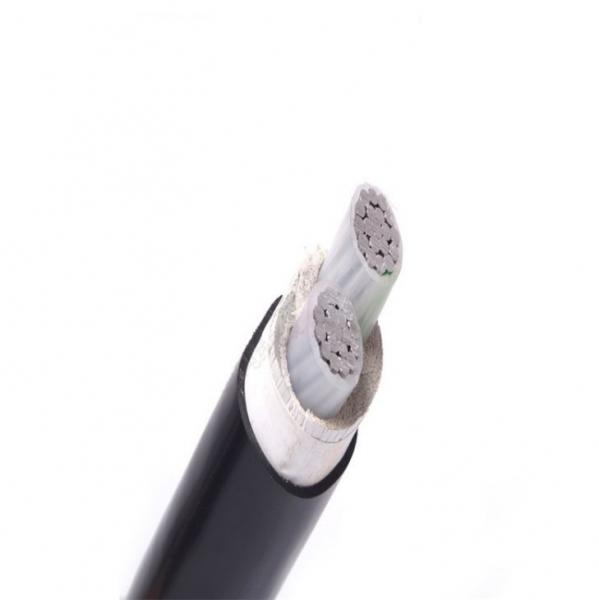

YJLV22 NA2XRY Al 2 Core Low Voltage Cable Steel Tape Armoured Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
Al Core SWA NA2XRY Low Voltage Electrical Cable

Conductor :
Aluminum Core

Insulation material :
XLPE

Application :
Electricity Supply

Type :
Low Voltage

Jacket :
PVC

Standard :
IEC60502

Filler :
Non-hygroscopic Material

Al Conductor XLPE Insulated STA PVC Jacket NA2XBY Low Voltage Electrical Cable

Construction:

Single core
1. Conductor: copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armouring: non-magnetic steel wire
5. Tape: non-hygroscopic material
6. Outer sheath: PVC

Multicore
1. Conductor: copper or aluminum, Type 1: solid conductor, or Type 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: non-hygroscopic material
4. Tape: non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armouring: mild steel wire
7. Tape: non-hygroscopic material
8. Outer sheath: PVC

Application:

NA2XBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Specificaiton:

Product name Low Voltage Electrical Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

Quality Promise:

1. Strictly implement the quality management system, and the products meet the relevant national standards and customer requirements.

2. Products are packaged and transported in strict accordance with user requirements and regulations to ensure safety and reliability during product loading, unloading and transportation.

3. For the number of meters per lap of the product, the company will pay 10 meters for one meter less.

4. The product implements three guarantees (guarantee quality, quantity, and price), and provide customers with free technical consultation and related technical information.

5. Strict quality control is carried out on the procurement of raw materials, product production process quality control points, semi-finished products, finished products and packaging to ensure excellent product quality and timely delivery of delivery dates.

We are China YJLV22 NA2XRY Al 2 Core Low Voltage Cable Steel Tape Armoured Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
