ZBS Type Clevis Used for Electric Equipment Ploe accessories transmission line
ZBS Type Clevis Used for Electric Equipment Ploe accessories transmission line image
Brand Name :
FUTAO
Model Number :
ZBS
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
10 pieces
Price :
$1 – $8
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs one month
Delivery Time :
10 workdays
Packaging Details :
Package by the box
Type :
ZBS
Material :
hot dip galvanized steel
Operation :
Convenient
Color :
Silver
Usage :
Overhead Transmission Line
Size :
From ZBS-07/10-80 to ZBS-32/42-100
ZBS Type Clevis Used for Electric Equipment Ploe accessories

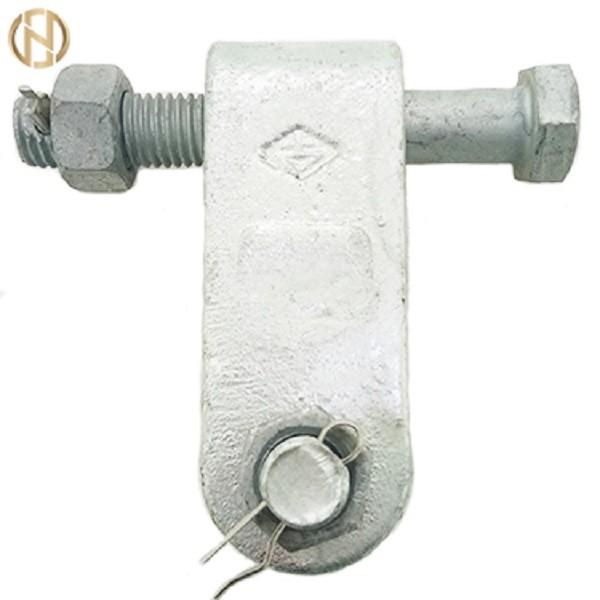

ZBS type clevis is mainly suitable for hanging suspension insulator string (composed of suspension insulator & suspension clamp) on the conductor subjected to the pole or tower; on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator & tension clamp) on the tension conductor subjected to the pole or tower.
ZBS Type Clevis used for Electric Equipment
| Type | Dimension (mm) | Nominal Failure Load (kn) | ||||
| L | H | C | M1 | M2 | ||
| ZBS-07/10-80 | 45 | 80 | 20 | 18 | 16 | 70 |
| ZBS-10/12-100 | 60 | 100 | 20 | 22 | 18 | 100 |
| ZBS-10/21-100 | 60 | 100 | 20 | 24 | 18 | 100 |
| ZBS-12/16-100 | 60 | 100 | 20 | 24 | 22 | 120 |
| ZBS-16/21-100 | 80 | 100 | 22 | 24 | 24 | 160 |
| ZBS-21/42-100 | 100 | 100 | 24 | 36 | 24 | 210 |
| ZBS-25/42-100 | 100 | 100 | 28 | 36 | 27 | 250 |
| ZBS-32/42-100 | 100 | 100 | 32 | 36 | 30 | 320 |
We are China ZBS Type Clevis Used for Electric Equipment Ploe accessories transmission line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
