0.6/1KV 95mm2 120mm2 LV Power Cables For Laying Indoor

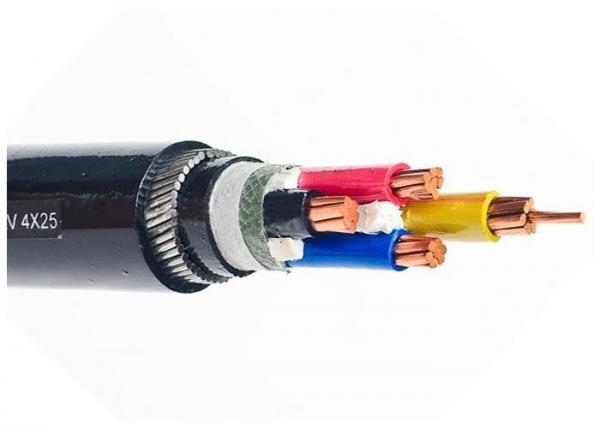

0.6/1KV 95mm2 120mm2 LV Power Cables For Laying Indoor image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Conductor :
Annealed Copper, Hard Drawn Aluminum
Insulation :
XLPE, PVC, PE
Armour :
DSTA, SWA, AWA
Outer Sheath :
PVC, ZR-PVC, PE
Sample :
Free Sample
Colour :
Black or As Requirement
Application :
Construction, Industrial, Underground etc.
Standard :
IEC, JIS, UL, BS, IEC, ASTM, DIN
Price :
Negotiable
0.6/1KV 95mm2 120mm2 LV Power Cables For Laying Indoor
1. Uo/U: 0.6/1KV
2. Standard applied: IEC, GB, BS, VDE, AS/NZS or as customers' requirement.
3. Working temperature: 70~125 °C.
4. Conductor: solid or stranded pure annealed copper or aluminum.
5. Insulation: XLPE or PVC or PE or LSZH.
6. Cores: 1 core, 2 core, 3 core, 4 core, 5 core, 2+1 core, 3+1 core, 3+2 core, 4+1 core
7. Cross section area:
0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10m2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2
8. Armour:
SWA (steel wire armored) or STA (steel tape armored) or AWA (aluminum wire armored)
9. Sheath: PVC or PE or Low smoking and halogen free compounding etc.
10. Color: black or as per requirement.
11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available.
12. Wooden drum package or as per request.
13. OEM can be available.
LOW VOLTAGE ELECTRICAL CABLE APPLICATION
0.6/1 kV electrical cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for building and industrial plants. And the sta/swa/awa armoured cables could bear extrenal mechanical force.
LOW VOLTAGE ELECTRICAL CABLE TYPES
| TYPE | DESCRIPTION | MAIN APPLICATION | |
| CU core | AL core | ||
| YJV/YJY | YJLV/YJLY | (Flame retardant) Cu, Al core XLPE insulated,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid |
| YJV22/YJV23 | YJLV22/YJLV23 | (Flame retardant) Cu, Al core XLPE insulated,steel tape armored,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force |
| YJV32/YJV33 | YJLV32/YJLV33 | (Flame retardant) Cu, Al core XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable | For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force |
| YJV42/YJV43 | YJLV42/YJLV43 | (Flame retardant) Cu, Al core XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable | For laying in water and seabed.Able to bear positive pressure and pulling for |
3 CORE STA ARMOURED LOW VOLTAGE CABLE DATA
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×4 | 0.7 | 1.8 | 15.2 | 379 | 37 | 45 | 4.61 |
| 3×6 | 0.7 | 1.8 | 16.3 | 463 | 46 | 57 | 3.08 |
| 3×10 | 0.7 | 1.8 | 18.6 | 628 | 63 | 77 | 1.83 |
| 3×16 | 0.7 | 1.8 | 20.7 | 851 | 83 | 100 | 1.15 |
| 3×25 | 0.9 | 1.8 | 24.2 | 1209 | 112 | 131 | 0.73 |
| 3×35 | 0.9 | 1.8 | 26.4 | 1546 | 137 | 158 | 0.52 |
| 3×50 | 1.0 | 1.8 | 26.8 | 1908 | 163 | 187 | 0.39 |
| 3×70 | 1.1 | 2.0 | 32.0 | 2874 | 211 | 233 | 0.27 |
| 3×95 | 1.1 | 2.2 | 35.4 | 3685 | 255 | 277 | 0.19 |
| 3×120 | 1.2 | 2.3 | 38.8 | 4560 | 298 | 317 | 0.15 |
| 3×150 | 1.4 | 2.4 | 43.4 | 5570 | 348 | 358 | 0.12 |
| 3×185 | 1.6 | 2.6 | 48.5 | 6837 | 403 | 403 | 0.10 |
| 3×240 | 1.7 | 2.7 | 53.5 | 8606 | 480 | 468 | 0.08 |
| 3×300 | 1.8 | 2.9 | 57.6 | 10577 | 549 | 531 | 0.06 |
We are China 0.6/1KV 95mm2 120mm2 LV Power Cables For Laying Indoor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 120mm2 low voltage armored cable, 120mm2 LV Power Cables, 95mm2 LV Power Cables, LV Power CablesSimilar Or Related
