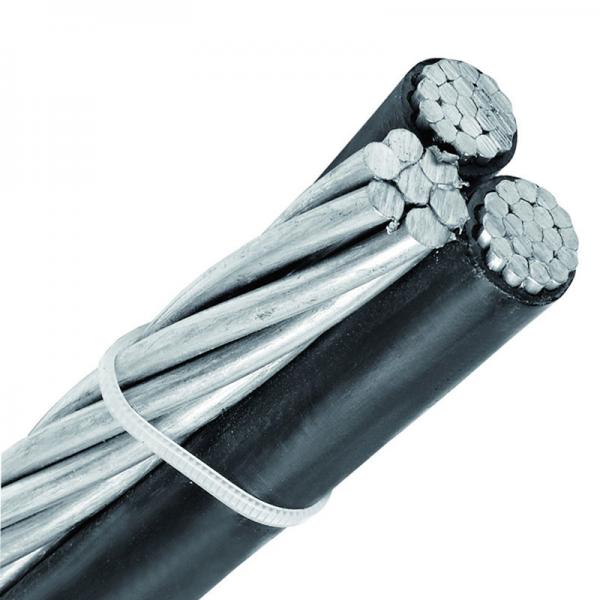

0.6/1kv Triplex Service Drop ABC Cable Wire
0.6/1kv Triplex Service Drop ABC Cable Wire image
Place of Origin :
China
Brand Name :
Sino
Model Number :
ABC
MOQ :
1000 meters
Packaging Details :
Wooden Drum/Iron Drum/As required.
Delivery Time :
10~30 days as per order
Payment Terms :
TT
Supply Ability :
2000 Kilometers per Month
Insulation Material :
XLPE
Application :
Overhead
Conductor Material :
Aluminum
Jacket :
NO
Type :
Low Voltage
Certification :
ISO,CCC
0.6/1kv Triplex Service Drop ABC Cable Wire
1,Application
Used to supply power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.
2,Construction http://www.electriccablechina.com [email protected]
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length |
Weight Per 1000 ft.(lbs.) |
Allo wable Amp acitles | ||||||
|
Size (A WG) |
Stranding |
Insul Thick(Mils) |
Size (AWG) |
Stranding |
Rated Strength (lbs.) |
inches | XLPE | PE | XLPE | PE | |
| AAC Neutral-messenger | |||||||||||
| Pateela | 6 | 7 | 45 | 6 | 7 | 563 | 14.88 | 103 | 103 | 85 | 70 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 14.88 | 154 | 154 | 115 | 90 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 20.58 | 233 | 233 | 150 | 120 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 20.58 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 20.58 | 368 | 368 | 205 | 160 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 25.42 | 462 | 462 | 235 | 185 |
| Melita | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 29.97 | 562 | 562 | 275 | 215 |
| Portunus | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 29.97 | 696 | 696 | 315 | 245 |
| Nannynose | 336.4 | 19 | 60 | 336.4 | 19 | 6146 | 38.79 | 1118 | 1118 | 420 | 325 |
We are China 0.6/1kv Triplex Service Drop ABC Cable Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
