1-35KV Medium Voltage Armored Cable XLPE SWA Underground Electrical Wire

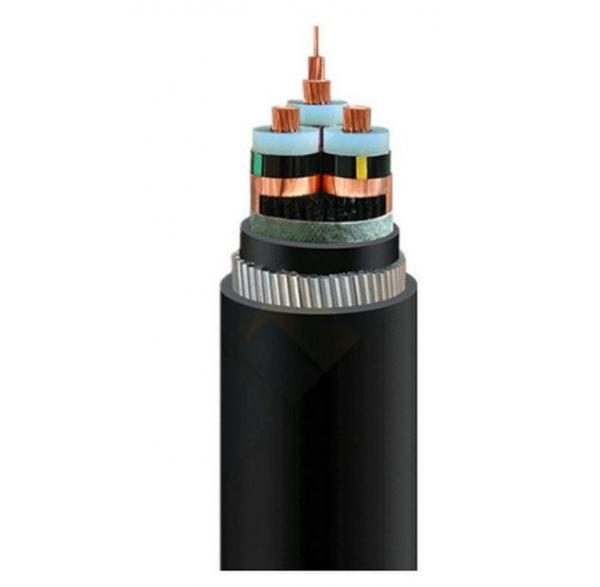

1-35KV Medium Voltage Armored Cable XLPE SWA Underground Electrical Wire image
Brand Name :
Model Number :
Place of Origin :
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 km per month
Delivery Time :
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
MV Underground Power Cable
Conductor material :
Insulation material :
Voltage level :
Medium Voltage CU/XLPE/SWA/PVC Cable With Steel Wire Armored Underground Power Cable
MV (Medium voltage) power cable, They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations., in conditions where cables are not exposed to heavier mechanical stress and tensile strain.With very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.
1. Rated voltage: 1-35KV
2. The cable laying temperature should not be lower than 0℃
3. The high temperature of the cable during short circuit (long duration no more than 5s), polyvinyl chloride insulation (PVC/A) 160～℃, cross-linked polyethylene insulation (XLPE) 250～℃.
4. High long-term allowable working temperature of cable conductor: PVC insulation 90℃, XLPE insulation 70℃.
5. The bending radius during cable installation: the allowable bending radius during cable installation is 15D, and the allowable bending radius of the cable close to the connection box and the terminal is 12DD-the outer diameter of the cable.
|Product name||MV cable|
|Rated Voltage||1-35 kv|
|Armoured Material||None/Steel Tape/Steel wire|
|Number of cores||1C,3C,|
Underground Electrical Cable
We are China 1-35KV Medium Voltage Armored Cable XLPE SWA Underground Electrical Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.Tags: 1kv Medium Voltage Armored Cable, 35KV Medium Voltage Armored Cable, Underground Electrical Cable, XLPE SWA Underground Electrical Wire
