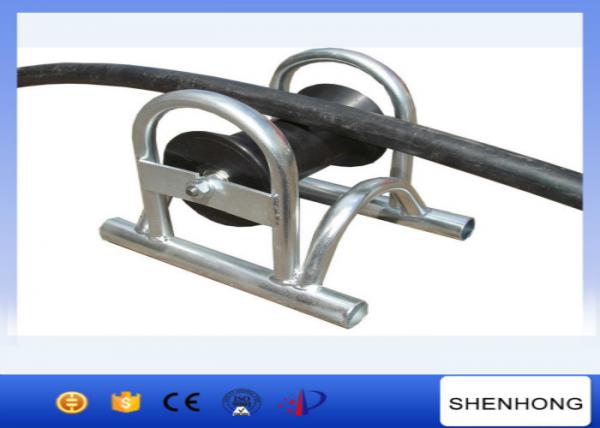

10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable
10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable image
Brand Name :
SHENHONG
Model Number :
CR0118
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Material :
Aluminum
Type :
Bridge Cable Roller
Rated load(KN) :
10
Applicable diameter(mm) :
≤150mm
Wheel Diameter :
140mm
Wheel Width :
160mm
10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable
Quick Infomation
Base Size: 350mm x 230mm. Weight: 4Kgs Load Capacity: 100Kg
Cable Pulling in Trench – Horizontal Cable Runs
Cable pulling contractor should ensure cable to be pulled in (LV or HV) should be supported on free running cable rollers with no projections or sharp edges to prevent snagging and subsequent cable sheath damage.
Straight cable rollers shall be placed in the cable trench to prevent the LV-HV cable from dragging on the cable trench bottom or in mud.
Data Sheet:For cables up to diameter 150mm.
| Cat. No. | Rated Load (kN) | Construction | Weight (kg) |
| CR0110 | 10 | Cast aluminum frame, aluminum (nylon) roller | 5.4/3.6 |
| CR0111 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.5/3.1 |
| CR0112 | 10 | Steel tubing, long legs, aluminum (nylon) roller | 5.8/4.2 |
| CR0113 | 10 | Steel plate base, aluminum (nylon) roller | 5.5/3.7 |
| CR0114 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
| CR0115 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
We are China 10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: cable pulley block, Cable Pulling Pulley, wire pulling pulleySimilar Or Related
-
Lockable Nylon Cable Pulley For Arbitrary Angle Protecting Cable In Tube Entrance
-

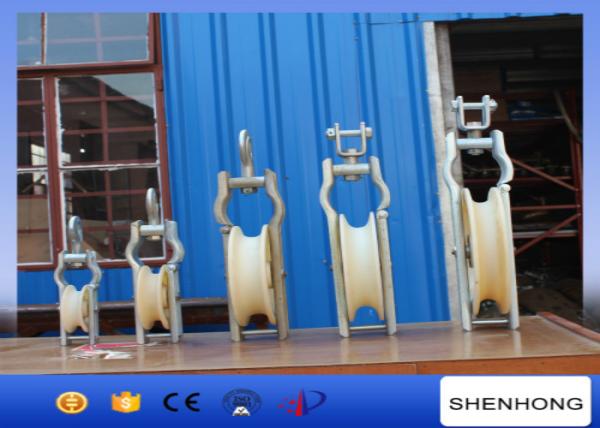

Single Sheave Cable Pulling Pulley Nylon Stringing Rollers For String Stranded Aluminum ACSR Conductors
-
