11KV 33KV Metal Power Pole , Steel Transmission Pole 7.5m 9m 11m
11KV 33KV Metal Power Pole , Steel Transmission Pole 7.5m 9m 11m image
Brand Name :
FUTAO
Model Number :
12M-450daN
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5Pieces
Price :
$200 – $800/ Piece
Payment Terms :
L/C, T/T
Supply Ability :
3200 pieces every month
Delivery Time :
15 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Material :
Hot Roll Steel Q345B, GR65
Height :
7.5m 9m 11m
Thickness :
3.8, 5.5, 7.2mm
Surface Treatment :
Hot Dip Galvanized
Powder Coated :
White, Blue, Sliver, Grey or more
Wind Resistance :
160 km/h
Shape :
octagonal
Metal power pole , steel poles for 7.5m 9m and 11m for 11kv and 33kv, Malaysia market.
This specification fit steel poles for 7.5m 9m and 11m for 11kv and 33kv Malaysia market.
Used in overhead distribution system ,the hot dip galvanized pole is fabricated from high quality sheet steel bent into an octagonal shape and welded along a vertical seam, the steel poles will be produced in two sections, and which will assembled on site by friction fit joint , or a single length design.
The poles will be suitable for use in the tropical climate , with a maximum ambient temperature of approximately 40 degrees and a mean annual temperature of approximately 30 degrees with with heavy rainfall and humidity of approximately 100%.
2.1 Electrical System.
This product will be fit for continuous operation under the following conditions:
| LV | 11KV | 33KV | ||
| a | Rated Frequency | 50HZ.3 Phase | ||
| b | Nominal Rated Voltage | 415V(rm) | 11KV | 33KV |
| c | Maximum Voltage | 12KV | 36KV | |
| d | 3 Phase symmetrical Fault level | 45KA | 25KA | 25KA |
| e | System Grounding | Solidly grounded | Neutral solidly/ grounded | |
3.1 Standards
The international and national publications referred to in this specification will be of the latest edition. Any departure from these requirements and technical specifications must be clearly stated. Unless otherwise specified, the insulators will be in accordance with the following standards:
Hot rolled pro ducts made of non-alloy structural steels. Technical delivery conditions
Hot-rolled products in weldable 6ne grain structural steels.
Hot-rolled flat pro ducts made of high yield strength for cold forming
Structural steel with improved atmosphere corrosion resistance
|
(1) |
BSEN 10210 : |
Hot structural hollow sections of non-alloy and grain structural steels. |
|
(2) |
ISO 1461 : |
Hot dip galvanized coatings on fabricate d iron and steel articles. Specification and test methods. |
|
(3) |
ASTM A123 : |
Standard specification for zinc (hot galvanized) coating on pro ducts fabricated from rolled, pressed, and forged steel shapes, plates, bars and strips |
|
(4) |
ASCE Manual #72 : |
Design of Steel Transmission Pole Structure. |
| Pole length | 7.5m | 9m | 11m | |||
| Pole type | Standard | 27 | Standard | Enhanced | Standard | Enhanced |
| Working Transverse Load (kN) | 1.5 | 1.5 | 2.2 | 4.4 | 2.6 | 5.2 |
|
Working |
0.64 | 10 | 15 | 30 | 18 | 36 |
|
Working |
8.3 | 10 | 15.2 | 30.4 | 22.6 | 45.2 |
| Minimum Thickness (mm) | 2.6 | 2.7 | 3.8 | 5.5 | 3.8 | 7.2 |
3.3.2 Tolerances
| Aspect | Allowable tolerance |
| Thickness | The tolerance on the thickness of the material shall be + 5% of the thickness. |
| Section | The tolerance on the outer diameter of circular column or the circle circumscribing the octagonal section shall be + 1.0% of the diameter. |
| Straightness | The completed pole shall be straight and true to the eye in axis over the entire length, and shall not deviate from straightness by more than 10 mm in 6000 mm or proportionately according to the length of the pole. |
| Twisting | The angle of twist between two through holes an d/or accessories shall be within 1.5 degree per 3 metre member length. |
| Pole length | The appropriate section length shall be not more than + 25 mm and the overall length by more than + 12.5 mm. |
- Base plate
A detachable base plate shall be made from galvanised mil d steel and attached to the base of the pole. The minimum dimension of each plate are as follow with minimum thickness of 3 mm to prevent the pole from sinking:
| Pole height (m) | 7.5 | 9 | 11 |
| Base plate wi dth(mm) | 82.5 | 90 | 100 |
- Mounting
Sufficient depth of pole planting is required to resist overturning with a minimum safety factor of 2.5, taking into consideration local soil conditions and expected maximum loading. The minimum planting depth shall be in accordance to the following table:
| Pole height (m) | 7.5 | 9 | 11 |
| Plante d depth (m) | 1.35 | 1.5 | 1.7 |

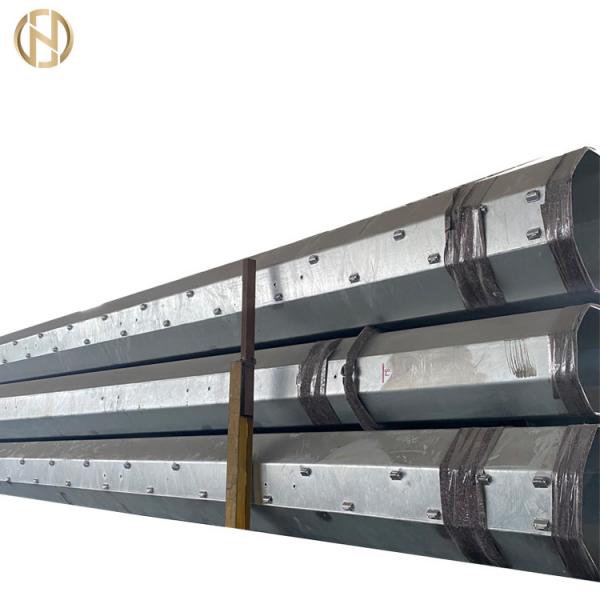

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
We are China 11KV 33KV Metal Power Pole , Steel Transmission Pole 7.5m 9m 11m manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
