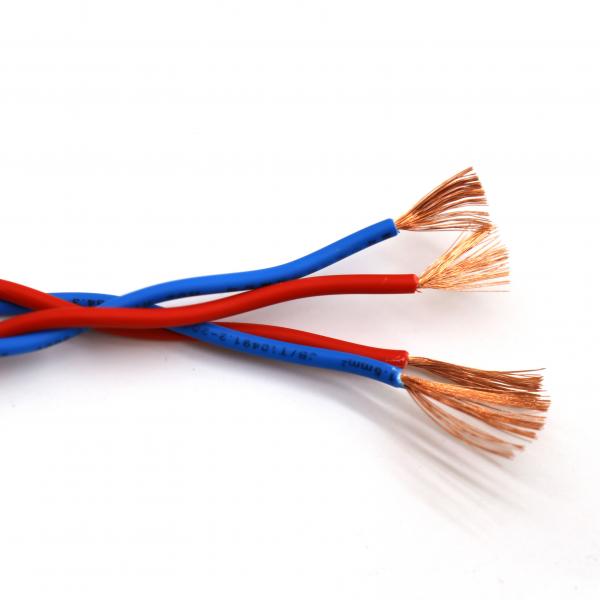

2 Core Twisted Fire Resistant Cable RVS Twisted Pair Cable Customized Color
2 Core Twisted Fire Resistant Cable RVS Twisted Pair Cable Customized Color image
Brand Name :
JHY CABLE
Model Number :
RVS cable-02
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-8 day
Packaging Details :
100m/roll
Conductor :
OFC/BC
Insulation :
PVC
Size :
2*1.5
Color :
Customized
Rated voltage :
300/300v
Application :
Fire protection system
2 core twisted cable wire /RVS twisted pair cable Fire Resistant Cable
1. Production Application
Apply to building intelligent alarm system of multi-core control, Building intercom system, three tables automatic reading system,electric appliance internal control,control meter of computer,electronic equipment and automatic device etc.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
- conductor: two cores by multi copper wire or tinned copper wire twisted
- insulation:PVC
1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.
2. The permissible bending radius in cable laying and installing.
a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.
b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.
c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.
5.Type & Special
|
No×Area of conductor mm² |
Upper limit of average outer diameter mm |
Max conductor resistance at 20℃ Ω/km |
Min insulation resistance at 70℃ Ω/km |
Recommended value of current carrying capacity A | Reference weight kg / km |
| 2*0.5 | 6.0 | 39.0 | 0.016 | 9 | 22 |
| 2*0.75 | 6.2 | 26.0 | 0.014 | 12 | 29 |
| 2*1 | 6.6 | 19.5 | 0.013 | 14 | 34 |
| 2*1.5 | 7.2 | 13.3 | 0.012 | 18 | 46 |
| 2*2.5 | 8.2 | 7.98 | 0.0095 | 25 | 66 |
| 2*4 | 9.5 | 4.95 | 0.0079 | 33 | 96 |
| 2*6 | 11.6 | 3.30 | 0.0081 | 42 |
145 |
| Quantity(box) | 10 | 100 |
| EST.time(day) | 3-5 | 5-15 |
