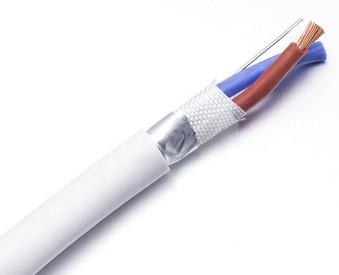

PH120 Standard Bare Copper Shielded Fireproof Electrical Wire , Fire Alarm Cable 2 Core 1.5mm
PH120 Standard Bare Copper Shielded Fireproof Electrical Wire , Fire Alarm Cable 2 Core 1.5mm image
Brand Name :
JHY CABLE
Model Number :
Fire alarm cable-03
Certification :
RoHS/CE/CCC/CB/UL
Place of Origin :
SHENZHEN CHINA
MOQ :
30 rolls
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-10days
Packaging Details :
100m/roll
Product Name :
Fire alarm cable
Conductor :
Copper
Insulation :
silicon rubber
Shield :
Aluminum foil
Certificate :
CB,CE,ROHS,UL
Application :
Alarm system
PH120 Standard Bare Copper Shielded 2core 1.5mm Fire Alarm Cable
Production Description:
1. Production Application
Cables symmetrical,twisted pair,with single copper conductor cross-section from 0.2 to 2.5mm2,with the isolation of fire-resistant silicone rubber sheathed in PVC low flammability with low smoke and gas evolution.The shell is orange.
Designed for group use,fixed installations in fire protection systems,including fire alarm systems,warning systems and evacuation,automatic fire extinguishing systems,smoke protection systems,as well as in other important life-support systems,which should keep working in a fire,used indoors and outdoors.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, UL,RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Cable Construction:
Conductor: Solid Bare copper or Stranded Bare copper
Color-coded PE/PVC insulation
Insulation Wraped with or without polyester Tape
Rip Cord : Synthetic Fiber
Otional Drain wire: Solid Or Stranded Bare Copper
Jacket : PVC or LSZH
100m/200m per roll or 305m/wooden reel
4. Types
| Part No. | Conductor | Dia(±5%)mm | Copper W (kg/km) | Cable W (kg/km) |
| JHY01 | 2×1.00mm2 | 5.8 | 23 | 51 |
| JHY02 | 3×1.00mm2 | 6 | 32 | 65 |
| JHY03 | 4×1.00mm2 | 6.6 | 41 | 81 |
| JHY04 | 2×1.50mm2 | 6.65 | 33 | 70 |
| JHY05 | 3×1.50mm2 | 6.75 | 46 | 90 |
| JHY06 | 4×1.50mm2 | 7.6 | 59 | 110 |
| JHY07 | 2×2.50mm2 | 7.8 | 50 | 100 |
| JHY08 | 3×2.50mm2 | 8.25 | 72 | 135 |
| JHY09 | 4×2.50mm2 | 9.1 | 95 | 165 |
5. Details
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China PH120 Standard Bare Copper Shielded Fireproof Electrical Wire , Fire Alarm Cable 2 Core 1.5mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
