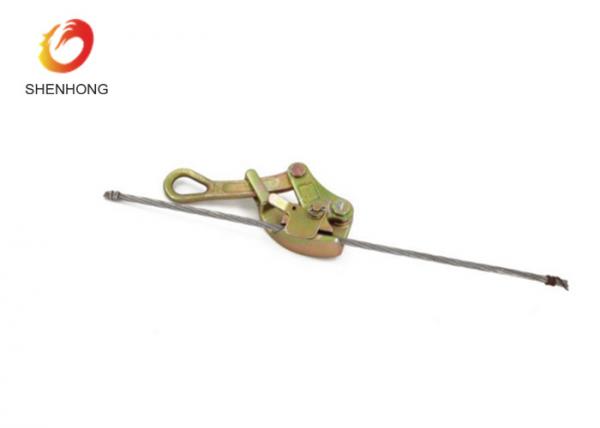

2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 – 22 Mm Cable
2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 – 22 Mm Cable image
Brand Name :
SHENHONG
Model Number :
S-3000
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
20
Weight(kg) :
1.3
Cable :
4-22mm
Material :
Alloy Steel
Warranty :
1 year
Name :
2 Ton Wire Grip Come Along Cable Pulling Clamp
2 Ton Overhead Cable Pulling Clamp Grip Wire Grip for 4-22mm Cable
Application
It is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.
Note:
1. S-1000C apply to steel rope and steel stranded wire;
2. S-2000CL apply to copper wire, ACSR or insulated wire;
3. S-3000CL apply to copper wire, ACSR or insulated wire.
Technical Data
|
Model
|
Rated load
(KN)
|
Damage load
(KN)
|
Apply to outer diameter(mm)
|
Maximum opening
(mm)
|
|
0.5TON
|
10
|
20
|
2.6-13
|
13
|
|
1TON
|
20
|
40
|
4-22
|
22
|
|
2TON
|
30
|
60
|
16-32
|
32
|
|
3TON
|
40
|
80
|
20-35
|
35
|
Our Factory
This is our factory's inventory chart and the picture of taking part in the exhibition.Welcome to visit our factory and make good relationship with you.
We are China 2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 – 22 Mm Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
