20KN Double Wheel Cable Pulling Pulley Wire Rope Hoisting Block for power construction
20KN Double Wheel Cable Pulling Pulley Wire Rope Hoisting Block for power construction image
Brand Name :
Shenhong
Model Number :
LZH
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
5 piece
Price :
US $20-100 / Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
15 work days after deposit
Packaging Details :
Export case
Type :
20KN Double Wheel Wire Rope Pulley
Material :
Steel,nylon wheel
Application :
Hoisting,Pulling,Lifting
Number of wheel :
2
Rated load :
20KN
20KN Double Wheel Wire Rope Pulley Hoisting Block for power construction
Application
Pulley block is an important lifting tool with simple strusture and use conveniently.
It can change direction of pulley, steel rope and high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery.
It widely used in installation in construction.
Technical Data
| Model Type | Rated Load(KN) | Sheave | Applicable Steel cable |
| LZH5-1K | 5 | 1 | 5.7 |
| LZH10-1K | 10 | 1 | 7.7 |
| LZH10-2 | 10 | 2 | 5.7 |
| LZH10-3 | 10 | 3 | 5.7 |
| LZH15-2 | 15 | 2 | 7.7 |
| LZH15-3 | 15 | 3 | 12.5 |
| LZH20-1K | 20 | 1 | 11 |
| LZH20-2 | 20 | 2 | 7.7 |
| LZH20-3 | 20 | 3 | 7.7 |
| LZH30-1K | 30 | 1 | 12.5 |
| LZH30-2 | 30 | 2 | 11 |
| LZH30-3 | 30 | 3 | 7.7 |
| LZH50-1K | 50 | 1 | 15.5 |
| LZH50-2 | 50 | 2 | 12.5 |
| LZH50-3 | 50 | 3 | 11 |
| LZH80-1K | 80 | 1 | 18.5 |
| LZH80-2 | 80 | 2 | 15.5 |
| LZH80-3 | 80 | 3 | 15.5 |
We are China 20KN Double Wheel Cable Pulling Pulley Wire Rope Hoisting Block for power construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: cable pulley block, Cable Pulling Pulley, wire pulling pulleySimilar Or Related
-

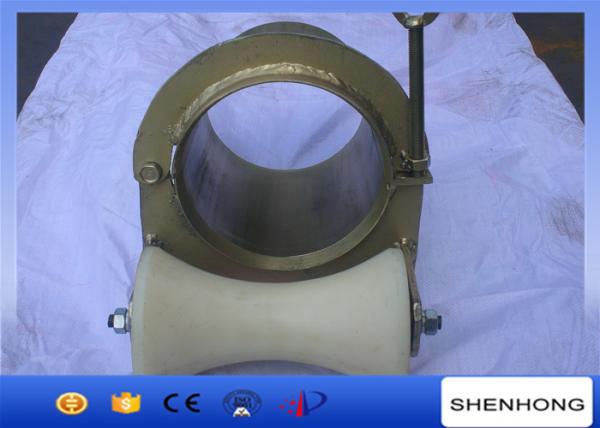

Lockable Nylon Cable Pulley For Arbitrary Angle Protecting Cable In Tube Entrance
-
Single Sheave Cable Pulling Pulley Nylon Stringing Rollers For String Stranded Aluminum ACSR Conductors
-

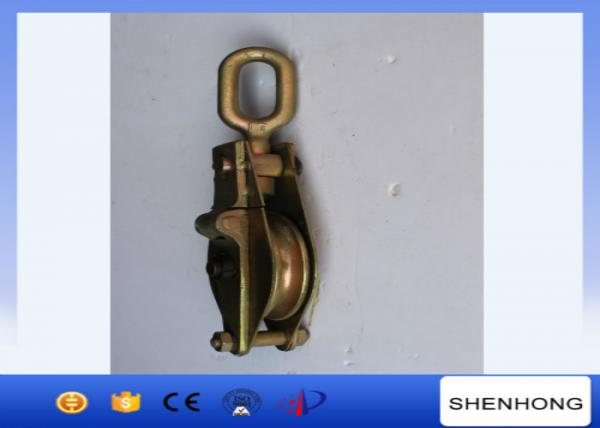

3 Ton Steel Snatch Block / Wire Rope Pulley Block Single Wheel Opening Hook For Lifting
-

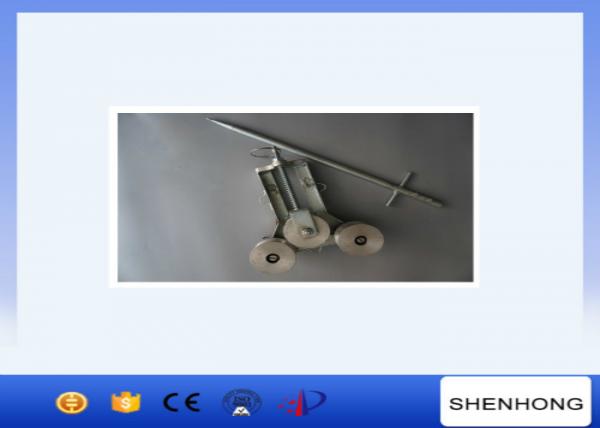

SJL-100 Aluminum Sheave Cable Pulling Rollers Conductor Grounding Roller When Tensioning Erect Wire
