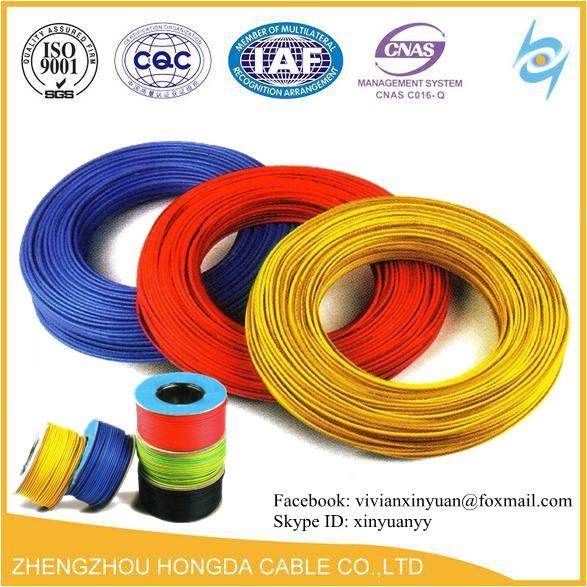

300/500V AWG 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 pvc coated copper wire electrical cable
300/500V AWG 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 pvc coated copper wire electrical cable image
Brand Name :
Hongda
Model Number :
AWG
Certification :
ISO, CCC
Place of Origin :
Henan China
MOQ :
100 meters
Price :
USD0.5/meter
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000km per month
Delivery Time :
10-15 days
Packaging Details :
100m/coil, 200m/coil, 500m/drum, 1000m/drum
Conductor material :
Copper
Insulation Color :
Black, Blue, Green, Red, Green/Yellow
Insulation Material :
PVC
Rated voltage :
300/300V, 300/500V, 450/750V
Packing :
100m/coil, 200m/coil, 500m/drum, 1000m/drum
300/500V AWG 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 pvc coated copper wire electrical cable
please directly contact with me :
Vivian Yuan | Sales Director
Henan (Zhengzhou) Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: vivian @ hdcable.com.cn | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
Electrical Wire Application:electric equipment, household, and electrical appliance
Electrical Wire type: (Electrial wires series include the following) :
1. Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
2. Stranded copper conductor, PVC insulated single core electrical wire
3.Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire
4.Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
5.Flexible copper conductor, PVC insulated single core electrical wire
6. Flexible copper conductor, PVC insulated twin parallel electrical wire
7. Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire
Electric Wire working condition:
Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Electric wire standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z – Length to the client's requirement.
AVAILABLE COLORS:
Cables (Sizes 20 to 10 AWG): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 8 to 2 AWG): Black, White, Blue and Red.
Cables (Sizes 1 to 1000 MCM): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT
| SIZE AWG O MCM |
CROSS SECTION AL mm2 |
STRANDING Number of wire x diameter mm. |
INSULATION THICKNESS mm. |
EXTERNAL DIAMETER mm |
TOTAL WEIGHT Kg/Km |
AMPACITY for 1 conductor in free air Amp. |
AMPACITY for 3 conductors in conduit Amp. |
PACKAGING |
| 14 | 2,08 | 1 x 1,63 | 1,14 | 3,91 | 31,60 | 30 | 20 | A,B |
| 12 | 3,31 | 1 x 2,05 | 1,14 | 4,33 | 44,50 | 35 | 25 | A,C |
| 10 | 5,26 | 1 x 2,59 | 1,14 | 4,87 | 64,40 | 50 | 35 | A,D |
| 8 | 8,34 | 1 x 3,26 | 1,52 | 6,30 | 104,50 | 70 | 50 | A,B |
| 14 | 2,08 | 7 x 0,62 | 1,14 | 4,14 | 33,20 | 30 | 20 | A,B |
| 12 | 3,31 | 7 x 0,78 | 1,14 | 4,62 | 46,90 | 35 | 25 | A,C |
| 10 | 5,26 | 7 x 0,98 | 1,14 | 5,22 | 67,50 | 50 | 35 | A,D |
| 8 | 8,37 | 7 x 1,23 | 1,52 | 6,73 | 116,60 | 70 | 50 | A,B,E |
| 6 | 13,30 | 7 x 1,55 | 1,52 | 7,69 | 170,40 | 95 | 65 | A,E |
| 4 | 21,15 | 7 x 1,96 | 1,52 | 8,92 | 255,50 | 125 | 85 | A,E |
| 3 | 7×2.2 | 1,52 | ||||||
| 2 | 33,62 | 7 x 2,47 | 1,52 | 10,45 | 388,90 | 170 | 115 | A,E |
| 1 | 42,36 | 7 x 2,78 | 2,03 | 12.4 | 482,90 | 195 | 130 | A,D,E |
| 1/0 | 53,49 | 19 x 1,89 | 2,03 | 13,51 | 621,00 | 230 | 150 | D,E,Z |
| 2/0 | 67,43 | 19 x 2,12 | 2,03 | 14,66 | 778,00 | 265 | 175 | D,E,Z |
| 3/0 | 85,01 | 19 x 2,39 | 2,03 | 16,01 | 934,00 | 310 | 200 | D,E,Z |
| 4/0 | 107,20 | 19 x 2,68 | 2,03 | 17,46 | 1159,00 | 360 | 230 | D,E,Z |
| 250 | 127,00 | 37 x 2,09 | 2,41 | 19,45 | 1368,00 | 405 | 255 | Z |
| 300 | 152,00 | 37 x 2,29 | 2,41 | 20,85 | 1623,00 | 445 | 285 | Z |
| 350 | 177,00 | 37 x 2,47 | 2,41 | 22,11 | 1876,00 | 505 | 310 | Z |
| 400 | 203,00 | 37 x 2,64 | 2,41 | 23,30 | 2128,00 | 545 | 335 | Z |
| 500 | 253,00 | 37 x 2,95 | 2,41 | 25,47 | 2631,00 | 620 | 380 | Z |
| 600 | 304,00 | 37 x 3,23 | 2,79 | 28,19 | 3174,00 | 690 | 420 | Z |
| 650 | 329,00 | 37 x 3,37 | 2,79 | 29,17 | 3345,00 | 725 | 440 | Z |
| 700 | 355,00 | 37 x 3,49 | 2,79 | 30,01 | 3609,00 | 755 | 460 | Z |
Electric Cable Markings
All 4 core armoured Cable will carry the following items on the surface print:
Manufacturers Name
Electric Cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of Cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the cable
Some special cable marking accept customized.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
please directly contact with me:
Vivian Yuan | Sales Director
Henan (Zhengzhou) Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: vivian @ hdcable.com.cn | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
We are China 300/500V AWG 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 pvc coated copper wire electrical cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: electric wireSimilar Or Related
-

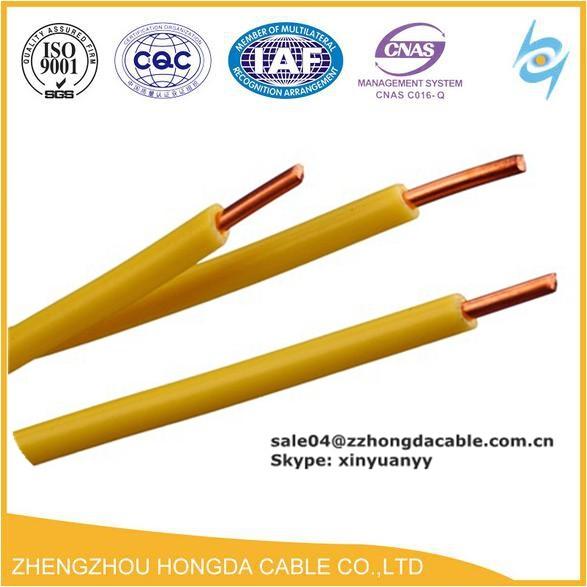

PVC/HR PVC / FRLS / ZHFR Insulated Pvc building 16mm electrical wire grounding earth cable with copper conductor
-

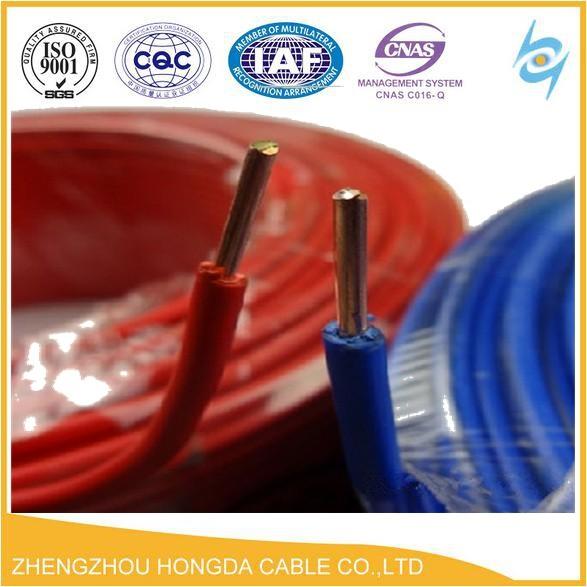

300/500V BV / RV / BVV 1.5mm 2.5mm 4mm 6mm 10mm 16mm electric cable wire made in china for house industrial
-
