450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard
450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard image
Brand Name :
JHY CABLE
Model Number :
KVV
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer’s request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
450/750V Multi Cores 1.5mm2 Unarmored Copper Control Cable PVC Sheath IEC standard
Application
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.
Construction
Conductor: Stranded Copper Conductor, class 2
Insualtion: PVC
Sheath: PVC
Standard
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificate
CE, RoHS, CCC, KEMA and more others at request
Specifications
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of Steel Tape mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4×2.5 | 0.8 | 2×0.2(0.3) | 1.5 | 13.4 | 16.1 | 0.001 | 7.41 | 450 |
| 4×4 | 0.8 | 2×0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.0085 | 4.61 | 505 |
| 4×6 | 0.8 | 2×0.2(0.3) | 1.5 | 15.6 | 18.8 | 0.007 | 3.08 | 619 |
| 4×10 | 1 | 2×0.2(0.3) | 1.7 | 19.4 | 23.5 | 0.0065 | 1.83 | 947 |
| 5×2.5 | 0.8 | 2×0.2(0.3) | 1.5 | 14.3 | 17.2 | 0.001 | 7.41 | 506 |
| 5×4 | 0.8 | 2×0.2(0.3) | 1.5 | 15.4 | 18.6 | 0.0085 | 4.61 | 586 |
| 5×6 | 0.8 | 2×0.2(0.3) | 1.7 | 16.7 | 20.2 | 0.007 | 3.08 | 737 |
| 5×10 | 1 | 2×0.2(0.3) | 1.7 | 21 | 25.4 | 0.0065 | 1.83 | 1125 |
| 7×0.75 | 0.6 | 2×0.2(0.3) | 1.5 | 11.8 | 14.2 | 0.012 | 24.5 | 317 |
| 7×1.0 | 0.6 | 2×0.2(0.3) | 1.5 | 12.2 | 14.7 | 0.011 | 18.1 | 425 |
| 7×2.5 | 0.7 | 2×0.2(0.3) | 1.5 | 13.5 | 16.3 | 0.01 | 7.41 | 554 |
| 7×4 | 0.8 | 2×0.2(0.3) | 1.5 | 15.2 | 18.4 | 0.0085 | 4.61 | 701 |
| 7×6 | 0.8 | 2×0.2(0.3) | 1.7 | 18 | 21.7 | 0.007 | 3.08 | 900 |
| 7×10 | 1 | 2×0.2(0.3) | 1.7 | 22.7 | 27.4 | 0.0065 | 1.83 | 1397 |
| 10×0.75 | 0.6 | 2×0.2(0.3) | 1.5 | 13.8 | 16.7 | 0.012 | 24.5 | 449 |
| 10×1 | 0.6 | 2×0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.011 | 18.1 | 558 |
| 10×1.5 | 0.7 | 2×0.2(0.3) | 1.5 | 16.1 | 19.5 | 0.011 | 12.1 | 753 |
| 10×2.5 | 0.8 | 2×0.2(0.3) | 1.7 | 18.8 | 22.7 | 0.01 | 7.41 | 956 |
| 10×4 | 0.8 | 2×0.2(0.3) | 1.7 | 20.5 | 24.8 | 0.0085 | 4.61 | 1203 |
| 10×6 | 0.8 | 2×0.2(0.3) | 1.7 | 22.5 | 27.1 | 0.007 | 3.08 | 1534 |
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Construction
| 1. Conductor material: | Copper Core | |
| 2. Jacket Material | PVC | |
| 3.Insulation Material | PVC | |
| 4.Jacket Colour | Black | |
| 5.Insulation Colour | Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request |
Product Image
Company Information:
| OUR SERVICE | |
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
|
We are China 450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: industrial control cables, multicore control cable, shielded control cableSimilar Or Related
-
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
-
450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard
-
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
-

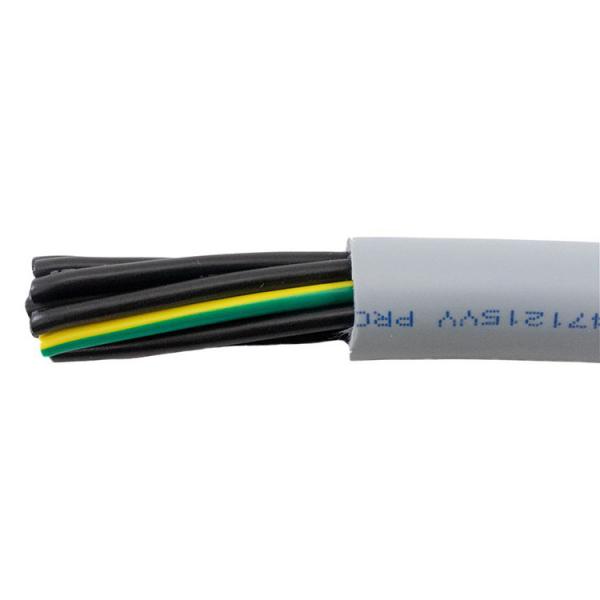

KVV PVC Insulated PVC Sheathed Cable 50/750V Copper Wire JHY Cable Customized Color
