822mm MC Nylon Wire Conductor Stringing Pulley Blocks

 China 822mm MC Nylon Wire Conductor Stringing Pulley Blocks supplier

822mm MC Nylon Wire Conductor Stringing Pulley Blocks image

Get a Quote Email to us

Brand Name :Suntech
Model Number :SHDN822
Certification :ISO9001
Place of Origin :Ningbo,China
MOQ :1 Set
Price :Get the newest price
Payment Terms :L/C, T/T, D/A, Western Union, MoneyGram
Supply Ability :2000 pcs per month
Delivery Time :7-15 days after deposit
Packaging Details :Exported Wooden Cases Or Containers
Material :Nylon and Steel
Sheave Size :822*710*110mm
Max Conductor :LGJ630
Outside Diameter :822mm
Type :Conductor Stringing Blocks
Rated load :30-150KN
Application :Construction Works
Usage :Large Diameter Bundel Stringing Pulley Blocks

Large Diameter Conductor 822mm Cable Pulling Stringing Pulley With MC Nylon Block

This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width)

of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our

conducting wire has the maximum cross section of 630 square millimeters.

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,

gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor

from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave

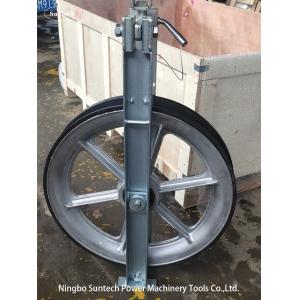

is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated

MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.

822mmTechnical Parameters

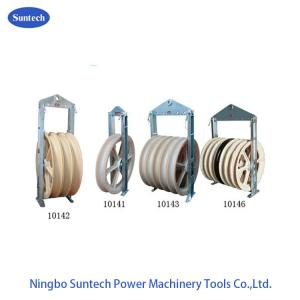

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Sheave Features
10141 SHDN822 1 30 40 MC nylon sheave
10142 SHSQN822 3 60 118 Middle: cast steel sheave Conductor: MC nylon wheel

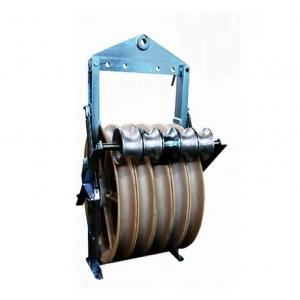

10143 SHWQN822 5 120 180
10146 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon wheel
10148 SHJ822 9 150 445

1.Maximum suitable conductor ACSR630.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3.Rubber lined MC nylon sheave for conductor can be customized.

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

We are China 822mm MC Nylon Wire Conductor Stringing Pulley Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
