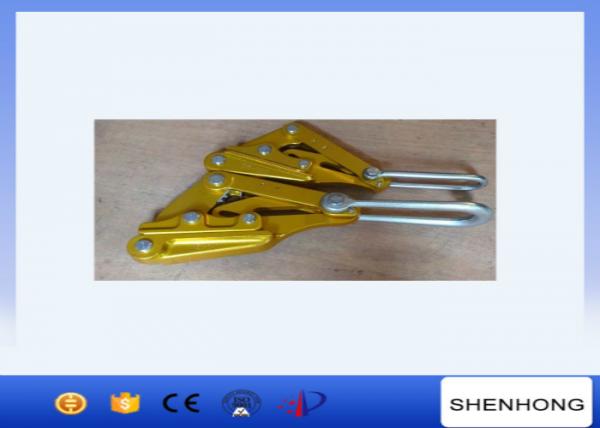

ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips image
Brand Name :
SHENHONG
Model Number :
SKL
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
7-80
Weight(kg) :
1.0-18
Product Name :
Transmission Line Automatic Aluminum Wire Grips for ACSR Conductor
Application :
sag adjusting and tensioning on overhead line construction.
Material :
Aluminum Alloy
Warranty :
1 year
ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
Application
The come along clamp is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation.
It is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation. The whole body and jaw is made of High strength Aluminum Alloy, light weight and good for protecting the surface of conductors.
AUTOMATIC CONDUCTOR WIRE GRIPS
| Item No. | Model | Working Load (KN) | Conductor Range | Max. Opening (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | Φ7-12 mm | 14 | 1.0 |
| 13222 | SKL-15 | 15 | Φ13-16 mm | 18 | 1.4 |
| 13223 | SKL-25 | 25 | Φ17-22 mm | 24 | 3.0 |
| 13224 | SKL-40 | 40 | Φ23-29 mm | 32 | 4.0 |
| 13225 | SKL-50A | 50 | Φ29-32 mm | 34 | 6.60 |
| 13226 | SKL-50B | 50 | Φ32-35 mm | 36 | 6.60 |
| 13227 | SKL-60 | 60 | Φ35-37 mm | 38 | 9.20 |
Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The wire grips will be packed in plywood case.
2. It also can be packed in wood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
