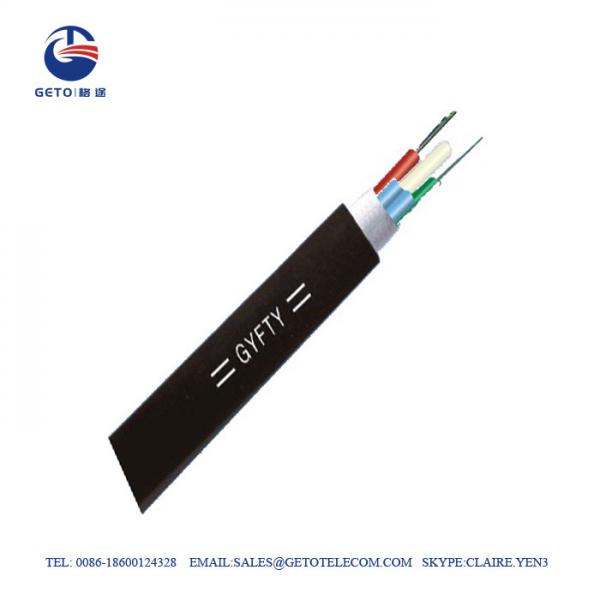

Aerial 1000 Metres ITU GYFTY Duct Fiber Optic Cable
Aerial 1000 Metres ITU GYFTY Duct Fiber Optic Cable image
Brand Name :
Geto Telecom
Model Number :
GYFTY
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
GYFTY Optical Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
4-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
High-voltage Long Distance Aerial Duct Optical Fiber Cable
Description
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.
Feature
Specification
| Structure parameters: | Structure | Nominal diameter(mm) | Nominal weight(kg/km) | Permitted tensile (N) |
Permitted crush(N) | Bend Radius(mm) |
| 2-36 | 1+6 | 8.6 | 60 | 600/1500 | 300/1000 | 10D/20D |
| 38-72 | 1+6 | 9.3 | 68 | 600/1500 | 300/1000 | 10D/20D |
| 74-84 | 1+7 | 10 | 82 | 600/1500 | 300/1000 | 10D/20D |
| 86-96 | 1+8 | 10.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| 98-108 | 1+9 | 11.4 | 103 | 600/1500 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 12 | 114 | 600/1500 | 300/1000 | 10D/20D |
| 122-132 | 1+11 | 12.6 | 125 | 600/1500 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 13.3 | 138 | 600/1500 | 300/1000 | 10D/20D |
| 146-216 | 1+6+12 | 13.8 | 149 | 600/1500 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 15.5 | 195 | 600/1500 | 300/1000 | 10D/20D |
