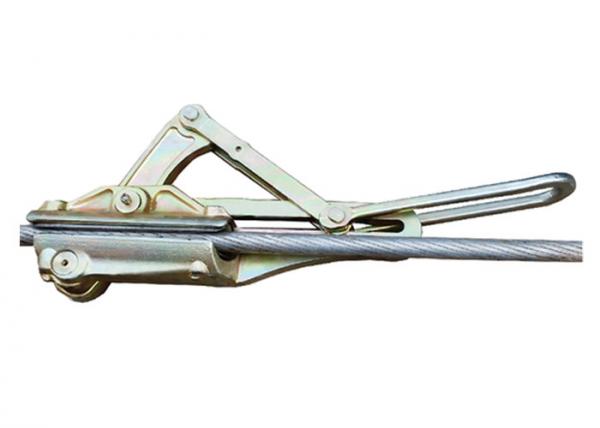

Aluminum Alloy Conductor Gripper Cable Pulling Clamp Self Gripping For Zebra Conductor
Aluminum Alloy Conductor Gripper Cable Pulling Clamp Self Gripping For Zebra Conductor image
Brand Name :
Shenhong
Model Number :
SKL
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7 work days after deposit
Packaging Details :
Carton
Type :
Self Gripping Clamp
Material :
Aluminum Alloy
Rated load :
40KN
Applicable Range :
300-400mm
Weight :
4kg
Max gap :
32mm
Aluminum Alloy Conductor Gripper Self Gripping Clamp for Zebra Conductor
Essential Parameter
| Item Number | Model | Rated Load (KN) | Applicable Conductor | Maximum Gap (Mm) | Weight (Kg) |
| 13221 | SKL-7 | 7 | ACSR25～70 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | ACSR95～120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | ACSR150～240 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | ACSR300～400 | 32 | 4.0 |
| 13225 | SKL-50A | 50 | ACSR500 | 34 | 6.6 |
| 13226 | SKL-50B | 50 | ACSR630 | 36 | 6.6 |
| 13227 | SKL-60 | 60 | ACSR720 | 38 | 9.2 |
●Uses :applied to adjusting sag in erecting wire and sagging .
●Features: the product is forged of high strength Aluminium alloy ,compact and lightweight .
We are China Aluminum Alloy Conductor Gripper Cable Pulling Clamp Self Gripping For Zebra Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Cable Pulling Clamp, wire grip clamp, wire rope gripsSimilar Or Related
-

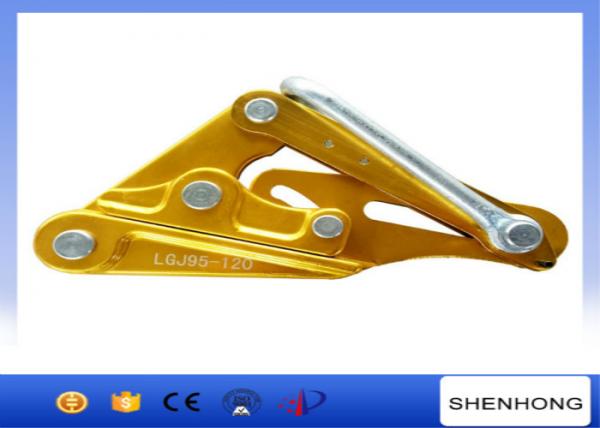

Aluminum Alloy Wire Pulling Grips For ACSR Sag Adjusting During Overhead Line Construction
-
18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
-

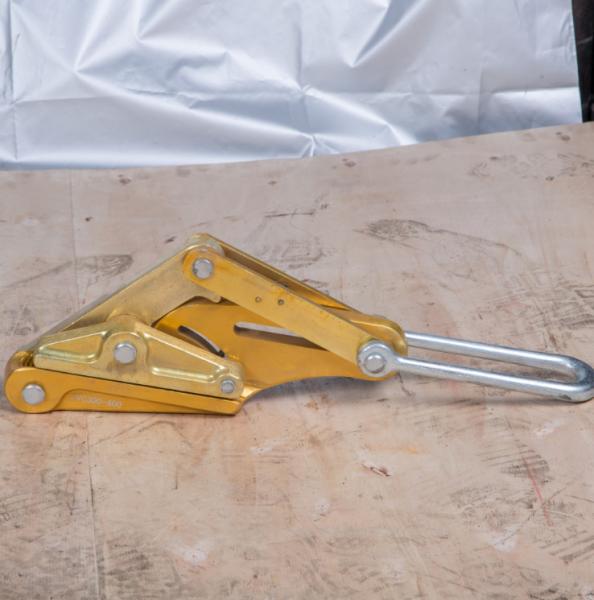

Aluminum Alloy Cable Pulling Clamp Insulated Conductor Gripper 1.7kg ~ 3.2kg Weight
-

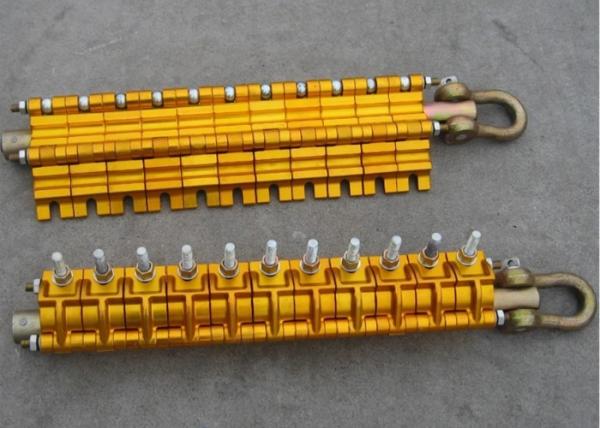

High Strength Bolted Type Cable Pulling Clamp Fit Big Conductor Overhead Line Construction
