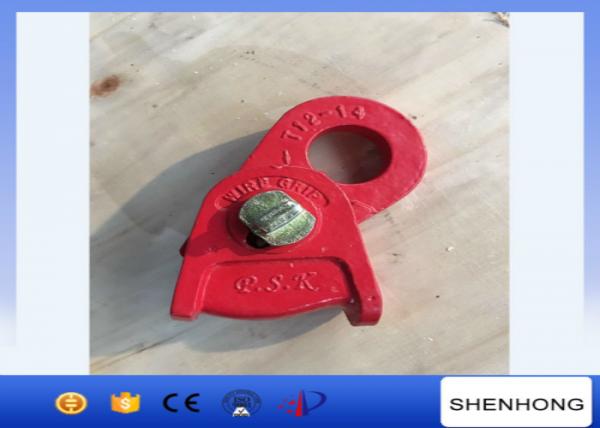

Bolt Type Kitto Clamp Tightening Wire Rope 3 Ton Working Load
Bolt Type Kitto Clamp Tightening Wire Rope 3 Ton Working Load image
Brand Name :
SHENGHONG
Model Number :
T16-20
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
15 days
Packaging Details :
carton
Working Load :
3T
Suitable Rope :
16-20mm
Application :
Tightening Wire Rope
Weight :
5kg
Product Name :
Bolt Type Kitto Clamp 3T for Gripping Steel Wire Rope 16-20mm
Item :
Kitto Clamp
Bolt Type Kitto Clamp Tightening Wire Rope 3 Ton Working Load
Applicaction
Wire rope bolt type, is used for steel core aluminum stranded wire;Steel strand.Instruments of wire rope or wire clamp and tighten.
1. Bolt type,easily application.
2. Strong tension stress.
3. Groove type structure,no damage to the conductor.
Technical Data
| Item Number | Load (T) | Wire Rope(mm) | Dimension(mm) | Weight(kg) | Package | |||
| A | B | C | L | Pkg/pcs | ||||
| T6-10 | 1 | 6-10 | 65 | 32.2 | 124.5 | 71.0 | 0.97 | 10 |
| T12-14 | 2 | 12-14 | 80 | 40.0 | 162.0 | 89.5 | 2.24 | 6 |
| T16-20 | 3 | 16-20 | 96 | 44.5 | 217.0 | 134.0 | 5.00 | 6 |
| T22-26 | 5 | 22-26 | 96 | 49.0 | 218.0 | 141.0 | 6.70 | 4 |
| T28-32 | 6 | 28-32 | 96 | 49.0 | 223.0 | 141.0 | 7.54 | 4 |
