Construction LV Power Cable Insulated Copper Wire XLPE PVC PE Material

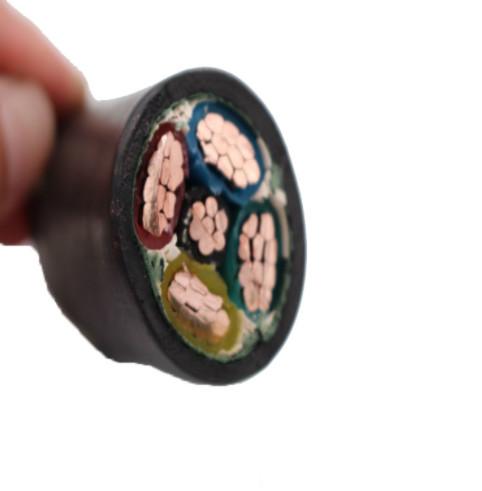

Construction LV Power Cable Insulated Copper Wire XLPE PVC PE Material image
Brand Name :
Huanghe
Model Number :
XLPE Insulated Copper Cable
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Material :
XLPE PVC PE
Size :
1cores 2 cores 3 cores 4 cores 5 cores
color :
Black and customized
Original :
china henan
insulation :
PVC
Sheath :
PVC
Construction LV Power Cable Insulated Copper Wire XLPE PVC PE Material
Armored cable with steel tape or aluminum tape to enhance the mechanical properties of the cable, the cable can withstand external mechanical pressure.
Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
China: GB/T 12706
Other standards: such as BS, DIN and ICEA, design & manufacture special power cable according to customer’s special request.
Copper Electrical Power Cable 240mm2 150mm2 aluminum / Copper/XLPE//SWA/PVC
| Nominal Section Area(mm 2 ) |
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 |
| Copper Core | 12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221 |
| Aluminum Core | 18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367 |
|
0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 |
8.7/10 8.7/15 |
12/20 | 18/20 18/30 |
21/35 | 26/35 | |||
| Voltage | Test Voltage | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 | ||
| Test Time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| Partial Discharge Test | Test Voltage | – | – | 6.2 | 10.4 | 15.1 | 20.8 | 31.1 | 36.3 | 45 | ||
| Discharge Capacity | – | – | 10 | 10 | 10 | 10 | 10 | 10 |
10 |
|||
We are China Construction LV Power Cable Insulated Copper Wire XLPE PVC PE Material manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
