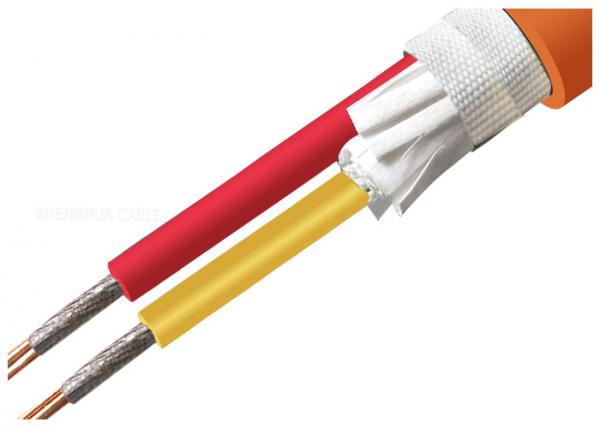

CU / Mica Tape Fire Resistant Wire , Fire Safe Cable For Sprinkler / Smoke Control System
CU / Mica Tape Fire Resistant Wire , Fire Safe Cable For Sprinkler / Smoke Control System image
Brand Name :
HOLD-ONE
Certification :
CE/KEMA/CCC
Place of Origin :
China
MOQ :
200M
Price :
USD0.5-50/Meter
Supply Ability :
100KM per Month
Delivery Time :
As per request
Packaging Details :
Wooden drum
Number of cores :
1core ,2 cores ,3 cores ,4core,5core
Standard :
IEC60502-1,IEC61034,IEC60754
Screen :
Mica Tape
Type :
Low Voltage
Size :
1.5-800mm2
Long-term temperature :
90℃
Color :
As per Request
Sample :
Free
CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: Normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: Single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Product code
| SC1-FPB-CE | XLPE insulated halogen-free polyolefin sheathed safe & clean fire-proof cable |
| SC3-FPB-CV | XLPE insulated low-halogen PVC sheathed safe & clean fire-proof cable |
| SC1-FPB-CE2 | XLPE insulated steel tape armored halogen-free polyolefin sheathed safe & clean fire-proof cable |
| SC3-FPB-CV2 | XLPE insulated steel tape armored low-halogen PVC sheathed safe & clean fire-proof cable |
Code designations
| S | Safe |
| C | Clean, Low smike, zero halogen |
| 1 or 3 | Flame resistant class as per GA306.1-2001 |
| A or C | Flame resistant type A or C |
| FP | Fire proof |
| B | Fire rated temperature 750-800℃ |
| C | Crosslinked polyethylene-XLPE |
| CT | XLPE insulated control cable |
| E | Zero halogen polyolefin sheath |
| V | Low halogen PVC sheath |
| 2 | Steel tape armoring |
| P | Copper wire braid screen |
| P2 | Copper tape screen |
Specifications
| Voltage | Model No. | Cores | Section area (mm2) | Model No. | Cores | Section area (mm2) |
| 0.6/1kV | SC1A-CE and SC1-FPB-CE series | 1 | 1.5 400 | SC1A-CE2 and SC1-FPB-CE2 series | 1 | 1.5 400 |
| 2 | 1.5 400 | 2 | 1.5 400 | |||
| 3 | 1.5 400 | 3 | 1.5 400 | |||
| 4 | 1.5 400 | 4 | 1.5 400 | |||
| 3+1 | 2.5 240 | 3+1 | 2.5 240 | |||
| 5 | 2.5 240 | 5 | 2.5 240 | |||
| 3+2 | 2.5 240 | 3+2 | 2.5 240 | |||
| 4+1 | 2.5 240 | 4+1 | 2.5 240 | |||
| 4 61 | 1 2.5 | 4 61 | 1 2.5 | |||
| 450/750V | SC1A-CTE series | 4 14 | 4 |
CBV |
||
| SC1A-CTE2 series | 4 14 | 6 | ||||
| SC1A-CTEP series | ||||||
| SC1A-CTEP2 series | ||||||
We are China CU / Mica Tape Fire Resistant Wire , Fire Safe Cable For Sprinkler / Smoke Control System manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
