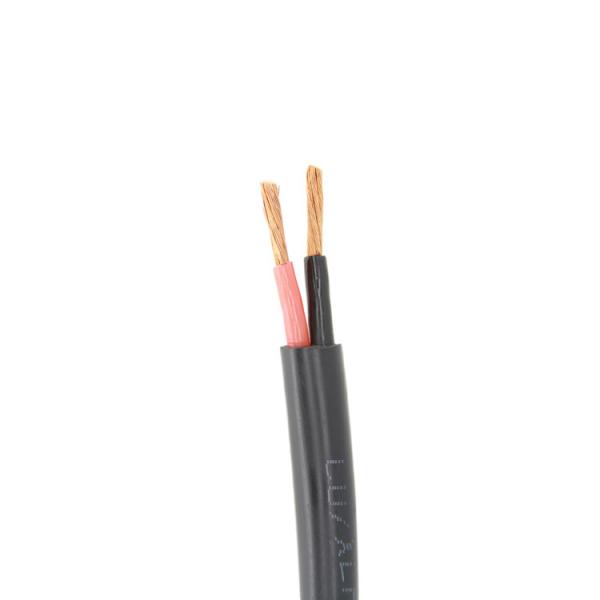

H05GGH2-F 500V Flat Standard Cable For Control Equipment

 China H05GGH2-F 500V Flat Standard Cable For Control Equipment supplier

H05GGH2-F 500V Flat Standard Cable For Control Equipment image

Get a Quote Email to us

Model Number :H05GGH2-F
Certification :CE/ISO9001
Place of Origin :Henan, China
MOQ :200meters
Payment Terms :L/C, T/T
Delivery Time :1-4 weeks
Packaging Details :Iron-wooden drum
Conductor material :Copper
Standard :BS EN 50525-2-11:2011, BS-6500
Working voltage :300/500 V
Color :Black (other colors on request)

China Cable BS 6500 Standard H05GGH2-F 300/500V Flat Cable For Control Equipment

Product Description








Application:

These H05GGH2-F flat cables are used for measuring, controlling or regulation in control equipment for conveyors and control units. They are also used in Fixed installation and for flexible use when temporarily moved in medium mechanical condition. And can be used outdoors when protected and in dry or moist conditions indoor also.



Cable Construction

Conductor: Annealed copper conductor, class 5 flexible Conductor as per EN 60228

Optional : Tinned copper

Insulation: Cross-linked elastomeric Compound Type EI 3 as per EN 50363-1

Outer Sheath: Cross-linked elastomeric Compound Type EM 4 as per EN 50363-2-1





Standard:

BS EN 50525-2-11:2011

BS-6500



Technical Characteristics:

Working voltage(U°/U) : 300/500 V



Cable Parameter​



NO. CONDUCTORS X CROSS-SECTION OUTER DIAMETER COPPER FACTOR CABLE WEIGHT
2×0,75 3,7×6,0 – 4,7×7,4 14.4 60







Packing&Shipping


Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum.

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port.




FAQ

Q1 Are you a manufacturer or a trade company?

A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.



Q2: What`s your export business type / customer groups?

A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !



Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.

A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.



Q4:What’s your MOQ?/ How long is your delivery time?

A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!





We are China H05GGH2-F 500V Flat Standard Cable For Control Equipment manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
