H07VV-F 2×6 SQMM Copper Conductor PVC Insulated 2 Core 0.5mm2 – 10mm2 Electrical Cable Wire

 China H07VV-F 2×6 SQMM Copper Conductor PVC Insulated 2 Core 0.5mm2 – 10mm2 Electrical Cable Wire supplier

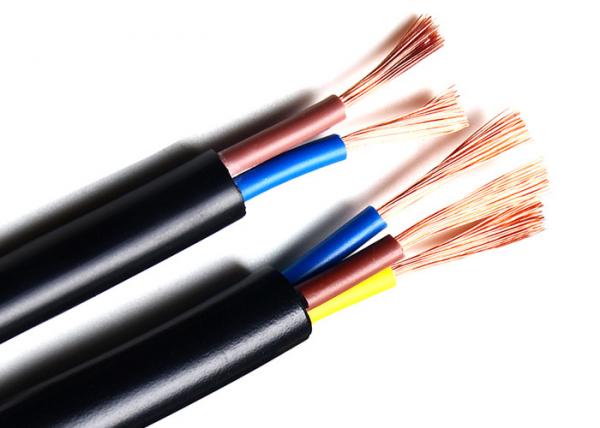

H07VV-F 2×6 SQMM Copper Conductor PVC Insulated 2 Core 0.5mm2 – 10mm2 Electrical Cable Wire image

Get a Quote Email to us

Brand Name :
SHENGHUA CABLE

Model Number :
H07VV-F 2x6mm2

Certification :
KEMA,CE,TUV,CCC

Place of Origin :
SHANGHAI CHINA

MOQ :
100 M

Price :
0.11-1.28 USD/M

Payment Terms :
L/C, T/T

Supply Ability :
642897KM/Week

Delivery Time :
7 days

Packaging Details :
100 M/Roll

Conductor :
Flexible Copper Wire Class5

Cable Size Arrange :
0.5 mm2-10 mm2

Insulation :
PVC

Jacket :
PVC

Core :
2-5

Sample :
Free

H07VV-F 2×6 SQMM Flexible Copper Conductor PVC Insulated Wire Cable 2 core 0.5mm2 – 10mm2

Descriptions

Single and MultiCore Flexible cables have been designed for indoor wiring applications, and are suitable for use in office equipment, domestic appliances, kitchen utensils, lamps, medical devices, and any type of electrical/electronic equipment.

Cable details

The conductor is made of plain annealed high purity Class 5 Copper, having excellent specific
electrical conductivity, and superior mechanical flexibility thanks to DuFlex conductor construction.

Polyvinyl Chloride (PVC) is used for insulating and sheathing material as it is suitable for various flexible applications like high electrical, mechanical and thermal properties.

On your request cables can be supplied as per your project requirements.

  • Ø Voltage designation U0/U

300/500 V 450/750V

  • Ø Identification

a. Single Core Cables
– Single Phase System: Green/Yellow (earth), Blue (Neutral), Brown (Live)
– Three Phase System: Green/Yellow (earth), Blue (Neutral), Brown, Black & Grey (Live)
Note: Other colours are available as per client requirement
b. Multi-Core Cables
2 Cores: Blue & Brown
3- Cores: Green/Yellow, Blue & Brown
4- Cores: Green/Yellow, Blue, Brown & Black
or Green/Yellow, Brown, Black & Gray
5- Cores: Green/Yellow, Black, Blue, Brown & Black

  • Ø Construction

Conductor
Size: 0.5mm2 up to 10mm2

Flexible, annealed copper wires acc to IEC 60228 class 5
Fire resistant optional: Mica tape
Insulation
PVC
Standard Sheath Colour
black

  • Ø Standards

International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

  • Ø Packing
  • Coils in 100 meters

Other lengths and sheath colours are available upon customer request

Technical parameter:

Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
2×1.5 0.8 1.8 10.5 12.1 3.5
2×2.5 0.8 1.8 11.3 7.41 3.5
2×4 1.0 1.8 13.1 4.61 3.5
2×6 1.0 1.8 14.1 3.08 3.5
2×10 1.0 1.8 16.7 1.83 3.5
2×16 1.0 1.8 18.8 1.15 3.5

Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.

We are China H07VV-F 2×6 SQMM Copper Conductor PVC Insulated 2 Core 0.5mm2 – 10mm2 Electrical Cable Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
