High Temperature RV Twin And Earth Cable ISO 9001:2015 Certificated/(450/750) PVC insulated cables

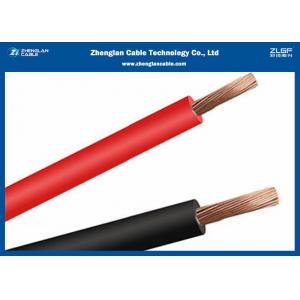

High Temperature RV Twin And Earth Cable ISO 9001:2015 Certificated/(450/750) PVC insulated cables image
High Temperature RV Twin And Earth Cable ISO 9001:2015 ISO 14001:2005 Certificated/(450/750) PVC insulated cables
Twin And Earth Cable Application:
RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.
Twin And Earth Cable Construction characteristics
Conductor: flexible conductor class 5 (China GB/T 3956 class 5 or
IEC60228 class 5)
Insulation: PVC
Rated voltage and standard:
300/500V 60227 IEC06 or GB/T5023.3-2008
450/750V 60227 IEC02 or GB/T5023.3-2008
Minimum service temperature: – 30 C
Maximum service temperature available +70 °C, +90 °C, +105 °C
Packaging: 100m/roll or as request
Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
There are 3 grades of fire prevention available which are
Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.
Grade B Except the insulation material, all other materials are flame retardant.
Grade C Only the sheath material is flame retardant
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
Twin And Earth Cable Data sheet
300/500V
Nominal section area(mm²) | No ./Dia. of Strand (mm) |
Nom. Thickness of insulation (mm) |
Average OD Max. (mm) |
Max. DC conductor resistance at 20℃ (Ω/km) |
Min. Insulating resistance at 70℃ (MΩ·km) |
1*0.5 | 16/0.2 | 0.6 | 2.6 | 9.1 | 0.013 |
1*0.75 | 24/0.2 | 0.6 | 2.8 | 12.2 | 0.011 |
1*1.0 | 32/0.2 | 0.6 | 3.0 | 15.1 | 0.010 |
RV-90℃
Nominal section area(mm²) | Core no./dia(mm) |
Max diameter (mm) |
Insulation thickness (mm) |
Reference weight (kg/km) |
90℃Minimum insulation electric resistance(mΩ/km) |
1*0.5 | 16/0.2 | 2.5 | 0.6 | 10.2 | 0.013 |
1*0.75 | 24/0.2 | 2.7 | 0.6 | 13.5 | 0.012 |
1*1.0 | 32/0.2 | 2.8 | 0.6 | 16.4 | 0.010 |
1*1.5 | 30/0.25 | 3.4 | 0.7 | 21.4 | 0.009 |
1*2.5 | 49/0.25 | 4.1 | 0.8 | 34.5 | 0.009 |
450/750V
Nominal section area(mm²) | No ./Dia. of Strand mm |
Nom. Thickness of insulation mm |
Average OD (Max.) mm |
Max. DC conductor resistance at 20℃ Ω/km |
Min. Insulating resistance at 70℃ MΩ·km |
1*1.5 | 30/0.25 | 0.7 | 3.5 | 13.3 | 0.010 |
1*2.5 | 50/0.25 | 0.8 | 4.2 | 7.98 | 0.009 |
1*4 | 77/0.26 | 0.8 | 4.8 | 4.95 | 0.007 |
1*6 | 78/0.31 | 0.8 | 6.3 | 3.30 | 0.006 |
1*10 | 84/0.39 | 1.0 | 7.6 | 1.91 | 0.0056 |
1*16 | 133/0.39 | 1.0 | 8.8 | 1.21 | 0.0046 |
1*25 | 189/0.41 | 1.2 | 11.0 | 0.78 | 0.0044 |
1*35 | 259/0.41 | 1.2 | 12.5 | 0.554 | 0.0038 |
1*50 | 361/0.41 | 1.4 | 14.5 | 0.386 | 0.0037 |
1*70 | 337/0.51 | 1.4 | 17.0 | 0.272 | 0.0032 |
We are China High Temperature RV Twin And Earth Cable ISO 9001:2015 Certificated/(450/750) PVC insulated cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
