IEC60502 Low Voltage Underground Cable N2XY XLPE Insulated PVC Sheathed Cable

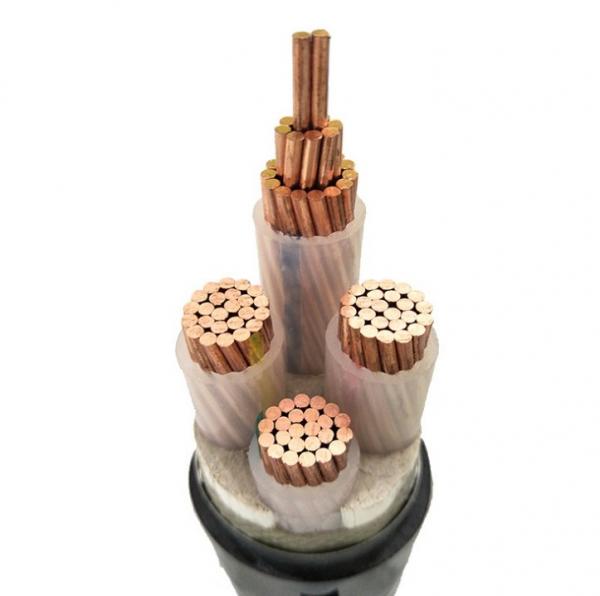

IEC60502 Low Voltage Underground Cable N2XY XLPE Insulated PVC Sheathed Cable image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Model Number :
N2XY
Product Name :
Underground Cable
Core material :
Copper
Insulation material :
XLPE
Application :
Urban underground power grid
Armor :
Non
Sheathed :
PVC
Standard :
IEC60502
Out Sheath Color :
Black Or Customized
IEC 60502 Low Voltage Copper XLPE Insulated PVC Sheathed Underground Cable
Skills requirement:
1. The maximum rated operating temperature of the cable conductor is 90℃;
2. When short-circuit (the longest duration does not exceed 5S), the maximum temperature of the cable conductor does not exceed 250°C;
3. The bending radius of the cable shall not be less than 15 times the outer diameter of the cable;
4. The surface of the outer sheath of the finished cable is printed with the manufacturer's name, product model, rated voltage, number of meters and other signs. The printed signs are clear and scratch-resistant. ；
5. The ambient temperature when laying the cable is not lower than 0°C;
6. Conventional sheath color: black;
7. The conventional number of cores is single core, 2C, 3C, 4C, 5C, 3C+1C, 4C+1C, 3C+2C;
8. Executive standard: GB/T12706-2008.
Specificaiton:
| Product name | Underground Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
Underground Electrical Cable
We are China IEC60502 Low Voltage Underground Cable N2XY XLPE Insulated PVC Sheathed Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
