Large Diameter Bundled Conductor Cable Pulling Pulley Nylon Wheel For Lifting

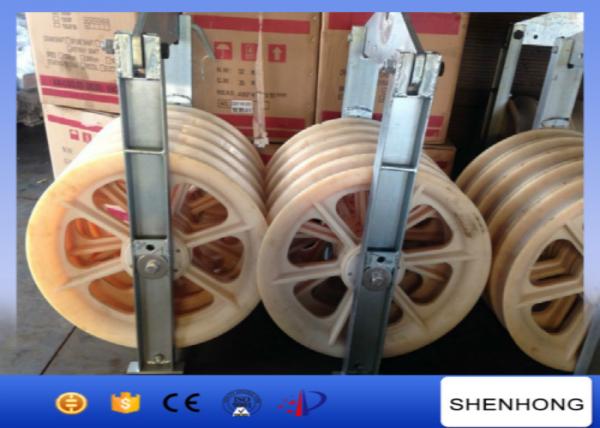

Large Diameter Bundled Conductor Cable Pulling Pulley Nylon Wheel For Lifting image
Brand Name :
shenhong
Model Number :
SH660
Certification :
BV,CE,ISO
Place of Origin :
Jiangsu, China
MOQ :
10 pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Piece/Pieces per Month
Delivery Time :
10-15 days after deposit
Packaging Details :
cartoon
Application :
construction
Number of sheave :
1-7
Rated load :
20-80KN
Weight :
30-190kg
Material :
nylon wheel
Used :
lifting
20-80KN 660mm Nylon Wheel Large Diameter Bundled Conductor Pulley Stringing Block
Application
It is used for stringing wire in electric power transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductors, 4 bundled conductors and 6 bundled conductors stringing.
Note:
1. Maximum suitable conductor ACSR500
2. Block dimension ( outside diameter * root diameter * sheave width) Φ660 * Φ560 * 100mm
Features
high strength and flexibility, easy to use, light weight and long service.
Technical data of 20-80KN 660mm Nylon Wheel Large Diameter Bundled Conductor Pulley Stringing Block
| Model | Number of wheel | Rated load(KN) | Weight(kg) | Features |
| SHD660 | 1 | 20 | 30 | Rubber lined aluminous sheave |
| SHS660 | 3 | 40 | 106 | Middle:cast steel sheave conductor:cementation aluminous sheave |
| SHW660 | 5 | 60 | 150 | |
| SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| SHSLN660 | 3 | 40 | 92 | Middle:MC nylon sheave conductor:cementation aluminous sheave |
| SHWLN660 | 5 | 60 | 120 | |
| SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| SHWQN660 | 5 | 60 | 110 | |
| SHQZ660 | 7 | 80 | 268 | Middle:cast steel sheave conductor:cementation aluminous wheel |
| SHQ660A | 7 | 80 | 190 | Middle:cast steel sheave conductor:MC nylon wheel |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China Large Diameter Bundled Conductor Cable Pulling Pulley Nylon Wheel For Lifting manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
