Monopole Communication Guyed Mast Steel Tower 20m High

 China Monopole Communication Guyed Mast Steel Tower 20m High supplier

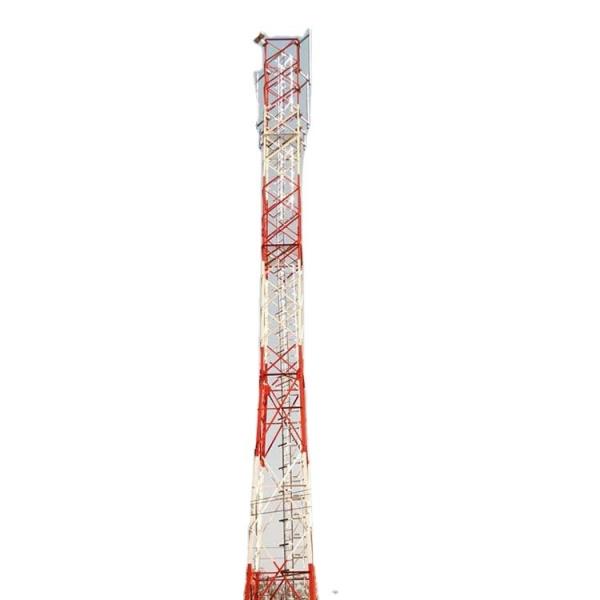

Monopole Communication Guyed Mast Steel Tower 20m High image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Guyed Mast Steel Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
80000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after payment

Packaging Details :
Exported Containers

Product Name :
Guyed Mast Steel Tower

Material :
Steel

Height :
15-20M

Surface Treatment :
Galvanized

Wind Speed :
110~160km/h_3 second gust

Lifetime :
20-30years

20m High Mast Monopole Communication Guyed Mast Steel Tower

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.

Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.

Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

Quick Detail:

Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This

fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.

As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe

capacity issues on their networks. While new technology and better wireless antennas can help, the best solution

is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more

stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles

and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more

aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas

Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients

4 legged square telecom lattice angular tower feature:

Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base

station; simple structure, easy processing, convenient for factory production. Generally high tower type,

suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.

Applicable to rural and suburban area which is open, lower area on the appearance requirements.

Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on

a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for

standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped

with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,

lightning protection kit and more. All of the accessories can be installed at any desired height and orientation

according to customer Specification.

We are China Monopole Communication Guyed Mast Steel Tower 20m High manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
