Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc.

 China Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc. supplier

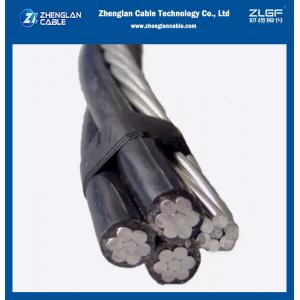

Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc. image

Get a Quote Email to us

Place of Origin :Henan, China (Mainland)
Model Number :ABC cable
Price :US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
MOQ :1000 Meter/M
Insulation Material :XLPE
Type :Low Voltage
Application :Overhead
Conductor Material :Aluminum
Jacket :PVC
Product name :Overhead bundle twist service drop wire quadruplex abc cable
Rated voltage :0.6/1KV
Conductor :Al/Al Alloy/Cu
Core :2,3,4,5,6,
Insulation :XLPE/PVC/PE
Certificate :ISO9001/ISO14001
Standard :IEC60502-2, BS 6622, NFC 33226, etc.
Package :Wooden Reel, Iron-wooden Reel, Steel Reel
Color :Black

Overhead bundle twist service drop wire quadruplex abc cable

Product Description



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC









AAC Conductor Supported Service Drop Cable- ICEA S-76-474







Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia.

Insulation Nominal

Thickness

Cross-section Area Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
DUPLEX
Collie 1X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 11.6 92.0
Spaniel 1X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 13.8 138.3
Doberman 1X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 16.8 211.2
Malemute 1X1/0+1/0AWG 53.5 19 9.2 1.52 53.51 7 9.36 8.8 21.6 339.9
TRIPLEX
Patella 2X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 13.3 149
Oyster 2X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 15.6 221
Clam 2X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 18.9 334
Murex 2X1/0+1/0AWG 53.49 7 9.2 1.52 53.51 7 9.36 8.8 24.2 538
Nassa 2X2/0+2/0AWG 67.43 7 10.3 1.52 67.44 7 10.5 11.2 26.6 663
Melita 2X3/0+3/0AWG 85.01 19 11.6 1.52 85.03 7 11.79 14.7 29.4 820
Portunus 2X4/0+4/0AWG 107.2 19 13 1.52 107.20 7 13.26 17.9 32.5 1017
Nannynose 2X336.4+336.4MCM 170.45 19 16.56 2.03 170.46 19 16.9 27.3 41.7 1631
QUADRUPLEX
Pinto 3X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 18 302
Mustang 3X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 21.6 454
Criollo 3X1/0+1/0AWG 53.51 19 9.2 1.52 53.51 7 9.36 8.8 27.8 734
Percheron 3X2/0+2/0AWG 67.44 19 10.3 1.52 67.44 7 10.5 11.2 30.4 902
Hanoverian 3X3/0G+3/0AWG 85.03 19 11.6 1.52 85.03 7 11.79 14.7 33.6 1113
Oldenburg 3X4/0+4/0AWG 107.20 19 13 1.52 107.20 7 13.26 17.9 37.0 1377
Lippizaner 3X336.4+336.4MCM 170.46 19 16.56 2.03 170.46 19 16.9 27.3 47.5 2212



















Click for more information











Related Products





ABC CABLE 2×16mm2

ABC CABLE WITH BARE NEUTRAL MESSENGER

ABC CABLE WITH INSULATED NEUTRAL WIRE

ABC CABLE NFC33209

ABC CABLE FOR AMERICA MARKET



Packaging & Shipping

Company Information
Our Certificate


Our Services

1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients





FAQ





Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
