Petrel ACAR Conductor Good Mechanical Properties For High Voltage Overhead Line

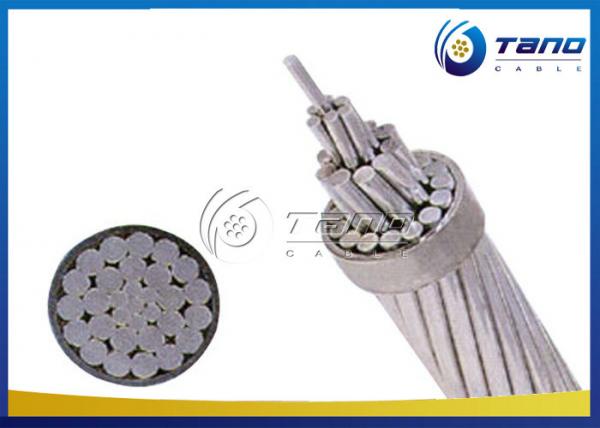

Petrel ACAR Conductor Good Mechanical Properties For High Voltage Overhead Line image
Brand Name :
TANO CABLE
Model Number :
ACAR
Certification :
CCC&ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Cash
Supply Ability :
300KM Per Month
Delivery Time :
15-30 days upon order quantity
Packaging Details :

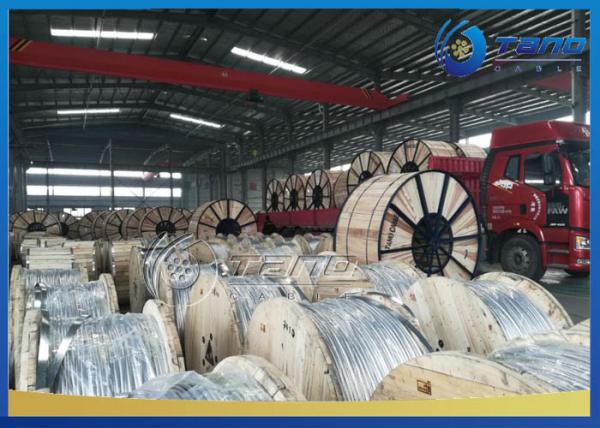

By wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Product Name :
ACAR
Brand :
TANO CABLE
Conductor :
Aluminum
Certificated :
ISO
Standard :
ASTM B524/B524M , IEC 61089.
Conductor type :
Stranded Conductor
TANO CABLE Petrel IS398 BS215 ASTM-B-231 ACAR bare Conductor For High Voltage Overhead Lines Conductor

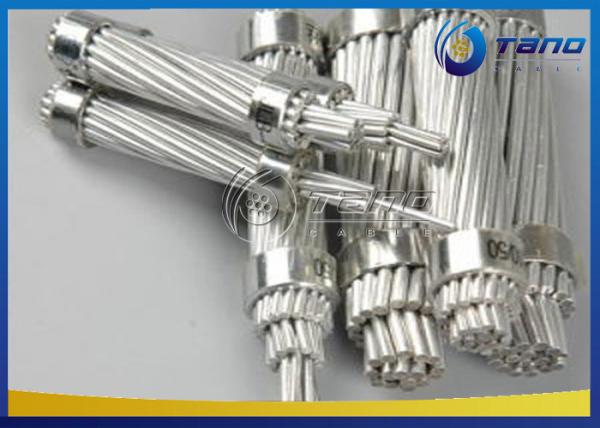

Characteristics of ACAR conductor
• improved strength to weight ratio
• better mechanical properties
• improved electrical characteristics
• highly resistant to corrosion.
• very good ratio Tensile Strength to Weight.
• excellent resistance to corrosion
Application of ACAR conductor
ACAR conductors are used as bare overhead conductor for power transmission and distribution lines,where higher capacity and strength for equal weight are prime line considerations.ACAR is the solution over ACSR due to its better strength-to-weight ratio.
Standard of ACAR conductor
ASTM B524/B524M , IEC 61089.

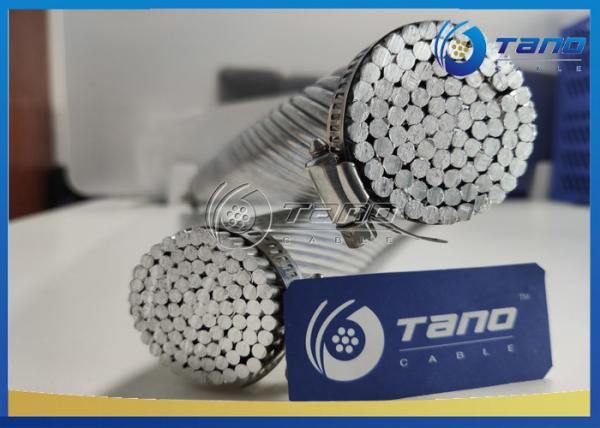

Construction of ACAR conductor
Construction Parameters
| Size | Nº of 1350 wires/mm |
Nº of 6201 wires/mm |
Overall cable diameter | Mass | Rated strength | Nominal dc resistance at 20 °C |
Ampacity | |||
| AWG | mm² | mm | kg/km | kgf | Ω/km | Sun. no wind | Sun and wind | No sun and wind | ||
| 4 | 21.1 | 4/1.96 | 3/1.96 | 5.88 | 58.22 | 507.5 | 1.4757 | 81 | 135 | 141 |
| 2 | 33.63 | 4/2.47 | 3/2.47 | 7.42 | 92.55 | 793.8 | 0.9282 | 111 | 180 | 189 |
| 1/0 | 53.51 | 4/3.12 | 3/3.12 | 9.36 | 147.3 | 1221.9 | 0.5833 | 153 | 241 | 255 |
| 2/0 | 67.44 | 4/3.50 | 3/3.50 | 10.51 | 185.6 | 1502.5 | 0.4628 | 179 | 278 | 296 |
| 3/0 | 85.03 | 4/3.93 | 3/3.93 | 11.8 | 234 | 1861.4 | 0.3671 | 211 | 322 | 343 |
| 195.7 | 99.16 | 4/4.25 | 3/4.25 | 12.74 | 272.9 | 2170.9 | 0.3148 | 234 | 355 | 379 |
| 4/0 | 107.22 | 4/4.42 | 3/4.42 | 13.25 | 295.1 | 2347.3 | 0.2911 | 247 | 373 | 398 |
| 250 | 126.68 | 12/2.91 | 7/2.91 | 14.57 | 348.8 | 2813.8 | 0.2442 | 280 | 417 | 447 |
| 300 | 152.01 | 12/3.20 | 7/3.20 | 15.96 | 418.6 | 3344 | 0.2035 | 317 | 467 | 502 |
| 350 | 177.35 | 15/3.45 | 4/3.45 | 17.24 | 488.7 | 3390 | 0.1704 | 356 | 520 | 560 |
| 350 | 177.35 | 12/3.45 | 7/3.45 | 17.24 | 488.3 | 3816 | 0.1744 | 353 | 515 | 555 |
| 355 | 179.88 | 12/3.47 | 7/3.47 | 17.36 | 495.3 | 3871 | 0.1720 | 356 | 519 | 560 |
| 392.5 | 198.88 | 24/2.62 | 13/2.62 | 18.3 | 547.7 | 4277 | 0.1551 | 382 | 554 | 598 |
| 400 | 202.68 | 12/3.69 | 7/3.69 | 18.4 | 558.1 | 4318 | 0.1526 | 387 | 560 | 606 |
| 450 | 228.02 | 12/3.91 | 7/3.91 | 19.54 | 627.8 | 4810 | 0.1357 | 419 | 603 | 653 |
| 450 | 228.02 | 18/2.80 | 19/2.80 | 19.61 | 627.3 | 5401 | 0.1387 | 416 | 597 | 647 |
| 450 | 228.02 | 15/3.91 | 4/3.91 | 19.54 | 628.4 | 4240 | 0.1325 | 423 | 609 | 659 |
| 465.9 | 236.08 | 12/3.98 | 7/3.98 | 19.89 | 650 | 4980 | 0.1310 | 430 | 616 | 668 |
| 465.9 | 236.08 | 18/2.85 | 19/2.85 | 19.95 | 649.5 | 5592 | 0.1339 | 426 | 611 | 662 |
| 500 | 253.35 | 12/4.12 | 7/4.12 | 20.6 | 697.6 | 5344 | 0.1221 | 451 | 644 | 698 |
| 500 | 253.35 | 18/2.95 | 19/2.95 | 20.7 | 697 | 6001 | 0.1248 | 447 | 638 | 693 |
| 500 | 253.35 | 30/2.95 | 7/2.95 | 20.7 | 698.3 | 4901 | 0.1189 | 456 | 651 | 706 |
| 500 | 253.35 | 24/2.95 | 13/2.95 | 20.7 | 697.7 | 5395 | 0.1218 | 451 | 644 | 699 |
| 550 | 278.69 | 18/3.10 | 19/3.10 | 21.68 | 766.7 | 6556 | ||||
