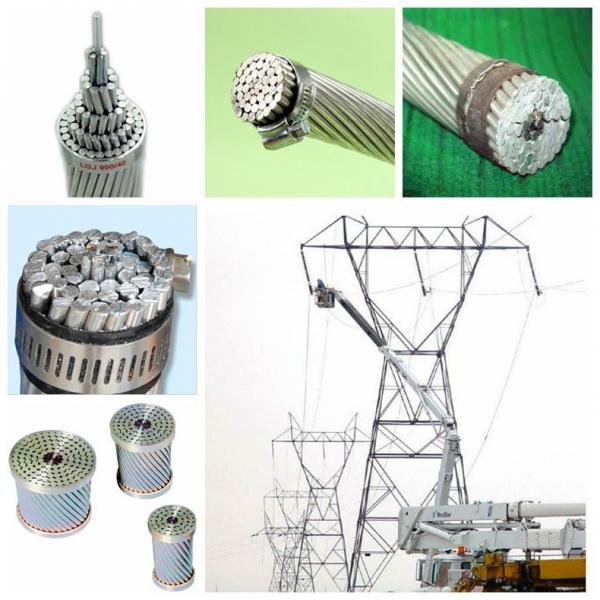

Overhead transmission line Bare ACAR Conductor
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum/Copper |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer.
ACAR is an excellent conductor choice where current carrying capacity ,higher strenghth and lower conductor weight are critical to the line design.
1. Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2. Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3. Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4. Part of ACAR(6201) conductors of ASTM sizes.
| Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
| 1350 | 6201 | 1350 | 6201 | Total | ||||
| 503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
| 587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
| 649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
| 653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
| 739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
| 853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
| 853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
| 927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
6.FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
We are China power transmission lines bare aluminum conductor acar conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
