Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission

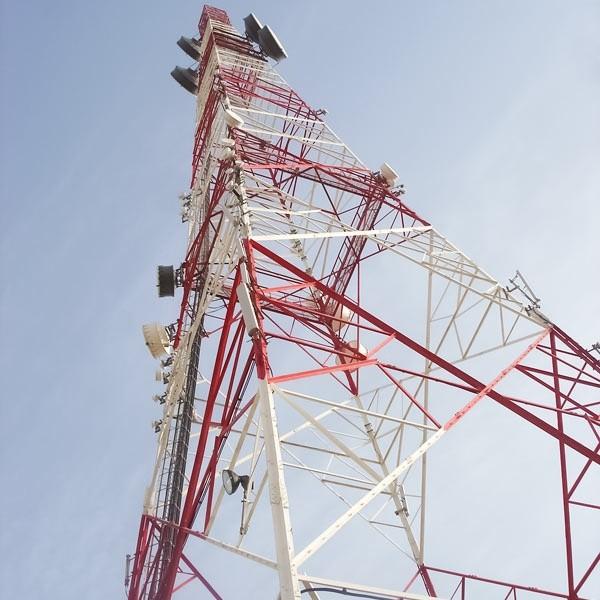

Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission image
Brand Name :
Suntech
Model Number :
Telecom Cell Tower
Certification :
ISO9001:2008 SGS COC
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Metric Ton/Metric Tons Per Year
Delivery Time :
35-45days after deposit
Packaging Details :
Exported Containers
Material :
Hot Roll Steel Q235,345,ASTM A36 A572 Gr50 Or Customized
Height :
20-80m
Wind Speed :
30M/S
Bolts and Nuts :
Grade 8.8/6.8/4.8;DIN7990, DIN931, DIN933;ISO4032, ISO4034
Model :
Self Supporting Cell Site Tower
Self Supporting Steel Telecom Cell Site Tower Singal Transmission Phone 4g Mobile Aerial
Quick Detail:
1. Design Code TIA/EIA-222-G/F Structure Steel
2. GradeMild SteelHigh Tensile Steel GB/T 700:Q235B, Q235C,Q235DGB/T1591:Q345B, Q345C, Q3455D,
ASTM A36, ASTM A572, Gr50EN10025: S235JR, S235J0, S235J2EN10025: S355JR, S355J0, S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree operational speed
5. Tension strength (Mpa) 360~510470~630
6. Yield strength (t≤16mm) (Mpa) 355235
7. Elongation (%) 2024
8. Impact strength KV (J) 27(20°C) —Q235B(S235JR)27(20°C)— Q345B(S355JR)27(0°C)— Q235C(S235J0)27(0°C)— Q345C(S355J0)27(-20°C)— Q235D(S235J2)27(-20°C)— Q345D(S355J2)
9. Bolts & Nuts Grade 4.8, 6.8, 8.8
10. Standards formechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933;
11.2 Nuts ISO4032, ISO4034;
11.3 Washers DIN7989, DIN127B, ISO7091
12. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding (SAW)
Specification
We are China Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
