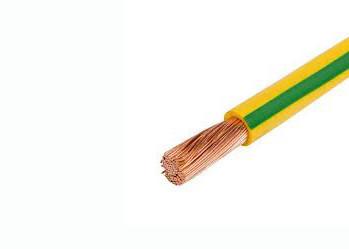

Single Strand Copper Cable , 10 Sq Mm Copper Cable 112 Kg / Km Net Weight

 China Single Strand Copper Cable , 10 Sq Mm Copper Cable 112 Kg / Km Net Weight supplier

Single Strand Copper Cable , 10 Sq Mm Copper Cable 112 Kg / Km Net Weight image

Get a Quote Email to us

Place of Origin :
China mainland

Brand Name :
Shenzhen chengtiantai cable

Certification :
CE, CB, Rhos, CCC

MOQ :
Negotiable

Price :
Negotiable

Packaging Details :
Coil in foil / drum

Delivery Time :
15 working days after payment

Model Number :
H07V-K

Rated Voltage :
450/750 V

Conductor :
copper conductor

Conductor Type :
stranded

Insulated :
PVC compound

Temperature Rating :
– 5 ℃ ~ + 70 °C

Minimum Bending Radius :
4 × outer diameter

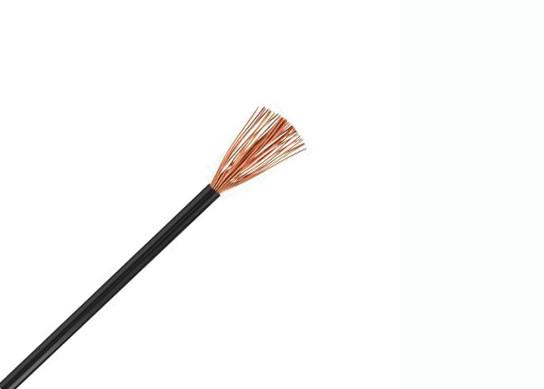

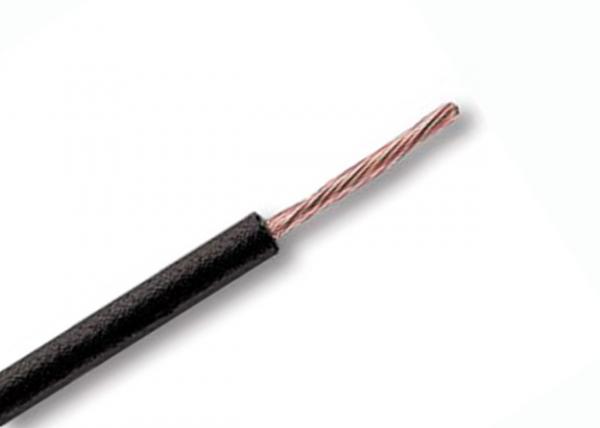

H07V-K PVC single core fine wire stranded 1×4 mm²

Quick details

Product category: H07V-K
Austrian type: Yf
Number of cores: 1
Nominal cross section: 1 x 10.0 mm²
Overall diameter approx: 6.1 mm
Net weight approx: 112 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 1.91 Ohms / km
Current carrying capacity: 73 A

Description

Applications:

  • These insulated wires are suitable for lying in tubes, under and surface mounting of plasters and also in closed installation conduits.
  • These are not allowed to install for direct laying on cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

Installation:

  • In industries
  • In houses
  • Suitable for installation in electrical installation pipes or similar closed systems – surface or flush mount

Standards/references:

  • International: IEC 60227-2
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:
red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)

Characteristics

Construction characteristics

Conductor material bare copper class 5
Insulation PVC with different colors

Dimensional characteristics

Nominal cross-section 10.0 mm2
No. of strands 1
Max. overall diameter 6.1 mm
Approximate weight 112 kg / km

Electrical characteristics

Rated Voltage Uo/U (Um) 450 / 750 V
Maximum current rating Air 25 ℃ 73 A
Maximum DC resistance, conductor 20°C 1.91 Ω / km
Test Voltage 2500 V

Usage characteristics

Maximum operating temperature 70 °C
Short-circuit max. conductor temperature (duration up to 5 S) 160 °C
Temperature Range – 5 °C to + 70 °C

Installation conditions

Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 x A N / mm²
Note:

  • Photographs are not to scale and do not represent detailed images of the respective products.
  • Prices are net prices without VAT and surcharges. Sale to business customers only.
  • The information in this document is subject to change without notice.

Delivery Port:

Port of Shenzhen Port of Hongkong Port of Guangzhou

Manufacturing Process Of Low Voltage Power Cable ( Unarmored )

1. copper rod 2. wire drawing 3. wire stranding
4.Inner sheath 5. Assembling 6.outer covering Process
7. Sheath Marking 8. Packing 9. cable delivering
