Universal Wire Stringing Block Pulley , Crossarm Mounted And Hooked Style

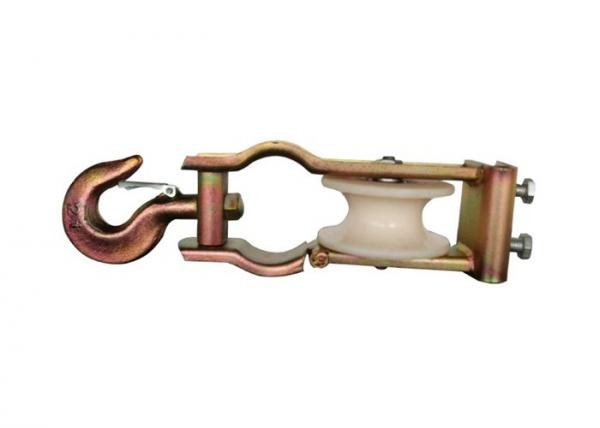

Universal Wire Stringing Block Pulley , Crossarm Mounted And Hooked Style image
Brand Name :
SHENGHONG
Model Number :
SHC-120X58
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pc
Price :
get latest price
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10-15 days after payment
Packaging Details :
Carton
Type :
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley
Wheel Diameter :
φ120mm
Wheel Width :
58mm
Rated Load :
20KN
Application :
stringing project
Wheel Material :
nylon
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley
Description:
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction
2. They have are used to support conductors, OPGW,ADSS, communication lines
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.
Universal Stringing Blocks with Hooks
The stringing blocks are used for overhead transmission line conductor stringing operation. It can be hanged or installed on cross arm
Data Sheet
|
Item No. |
Model |
O. D. of Sheave (mm) |
Sheave Width (mm) |
Rated Load (KN) |
Weight (kg) |
Material |
|
10261 |
SHC-80X50 |
Φ80 |
50 |
5 |
1.9 |
Aluminum |
|
10262 |
SHC-120X30 |
Φ120 |
30 |
5 |
2.1 |
|
|
10263 |
SHC-160X40 |
Φ160 |
40 |
10 |
2.5 |
|
|
10264 |
SHC-120X58 |
Φ120 |
58 |
20 |
3.5 |
|
|
10271 |
SHCN-80×50 |
Φ80 |
50 |
5 |
1.4 |
Nylon |
|
10272 |
SHCN-120×30 |
Φ120 |
30 |
5 |
1.6 |
|
|
10273 |
SHCN-160×40 |
Φ160 |
40 |
10 |
2 |
|
|
10274 |
SHCN-120×58 |
Φ120 |
58 |
20 |
2.5 |
Product Details
Packing and Delivery
Why choice us ?
1. Quality, loyalty and service is our faith!
Deemed continuous improvement as our permanent pursuits.
2. We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
3. We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
4. We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
We are China Universal Wire Stringing Block Pulley , Crossarm Mounted And Hooked Style manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
