40KN Bundled Conductor Stringing Blocks MC Nylon Sheave

 China 40KN Bundled Conductor Stringing Blocks MC Nylon Sheave supplier

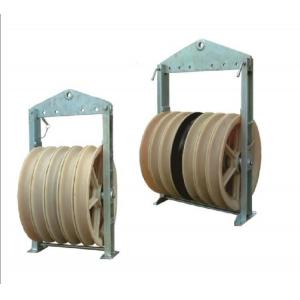

40KN Bundled Conductor Stringing Blocks MC Nylon Sheave image

Get a Quote Email to us

Brand Name :Suntech
Model Number :508mm,660mm
Certification :ISO
Place of Origin :Ningbo,China
MOQ :1 PCS
Price :Get the newest price
Payment Terms :L/C , T/T, Western Union
Supply Ability :2000 pcs per month
Delivery Time :7-15 days after Payment
Packaging Details :Exported Box and Containers
Name :SHDN Conductor Stringing Blocks
Material :MC Nylon Sheave and Steel Support
Load Capacity :40KN,60KN or Customized
Model :SHDN
Usage :For Conductors
Site :Overhead line stringing works

Bundled conductor block pulley transmission line stringing tools 508 mm wheel with best price

Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg)

Features

10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10103 SHW508 5 60 93
10104/10104A SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10106 SHWLN508 5 60 79
10107/10107A SHSQN508 3 40 38 MC nylon sheave
10108/10108A SHWQN508 5 60 70

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction.

We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.

1.Maximum suitable conductor ACSR400.Configuration:

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm)

3.Sheave dimension Φ508×Φ408×100 (mm) can be customized.

We are China 40KN Bundled Conductor Stringing Blocks MC Nylon Sheave manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
