660X110mm Pilot Wire Bundled Conductor Stringing Blocks For Transmission Line

 China 660X110mm Pilot Wire Bundled Conductor Stringing Blocks For Transmission Line supplier

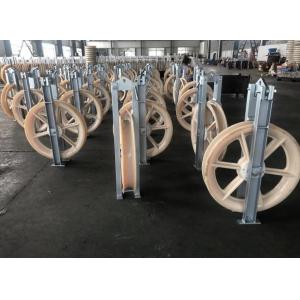

660X110mm Pilot Wire Bundled Conductor Stringing Blocks For Transmission Line image

Get a Quote Email to us

Brand Name :Suntech
Model Number :660X110mm
Certification :ISO
Place of Origin :Ningbo,China
MOQ :1 Set
Price :Get the newest price
Payment Terms :L/C , T/T, Western Union
Supply Ability :2000 pcs per month
Delivery Time :15-20 days after Payment
Packaging Details :Nude Cargo in Containers or Wooden Cases
Name :Bundled Condutor Stringing Blocks
Load :60KN
Sheave :1,3,5,7,9
Application :Power Construction
Material :MC Nylon Sheave and Steel Support
Usage :Construction Works

660X110mm Pilot Wire Bundled Conductor Stringing Blocks For Transmission Line

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,

inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

660MM Overhead Transmission Line Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10121 SHD660 400-500 20 30 Aluminum alloy
10124 SHDN660 400-500 20 24 MC Nylon
10122 SHS660 400-500 40 106 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10125 SHSLN660 400-500 40 92
10127 SHSQN660 400-500 40 76 MC Nylon
10123 SHW660 400-500 60 150 Aluminum Alloy lined with neoprene
10126 SHWLN660 400-500 60 120
10128 SHWQN660 400-500 60 110 MC Nylon
10129 SHQZ660 400-500 80 260 Central steel, conductor sheave nylon or aluminum alloy
10130 SHQ660A 400-500 80 190

Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

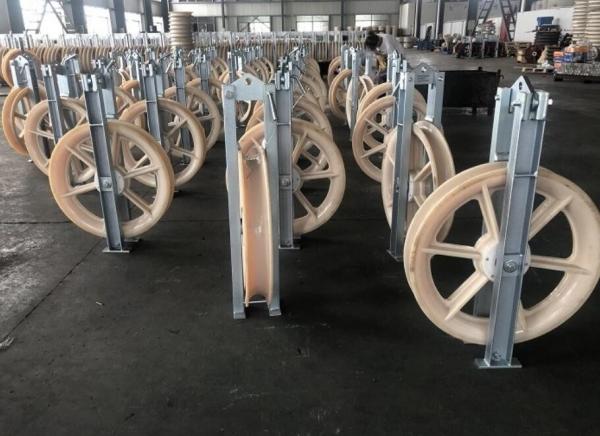

Single sheave Nylon Stringing Block

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10191 SHDN-120×30 25-70 5 1.5 Nylon
10192 SHDN-160×40 70-95 10 2.4
10193 SHDN-200×40 95-120 15 2.6
10194 SHDN-200×60 120-150 15 3.1
10195 SHDN-250×40 120-150 20 3.7
10196 SHDN-250×60 150-180 20 3.9
10197 SHDN-270×60 180-240 20 4.4
10198 SHDN-320×60 240-300 20 7.5
10199 SHDN-400×80 300-400 20 8
10104 SHDN508 300-400 20 16 Nylon, optional can be lined with neoprene
10124 SHDN660 400-500 20 24
10131 SHDN750 500-600 30 32
10141 SHDN822 600-700 30 38
10151 SHDN916 700-800 50 51
10165 SHDN1040 800-900 50 60

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
