Low Voltage PVC Insulated Power Cable VVR Flexible Electrical Power Wire

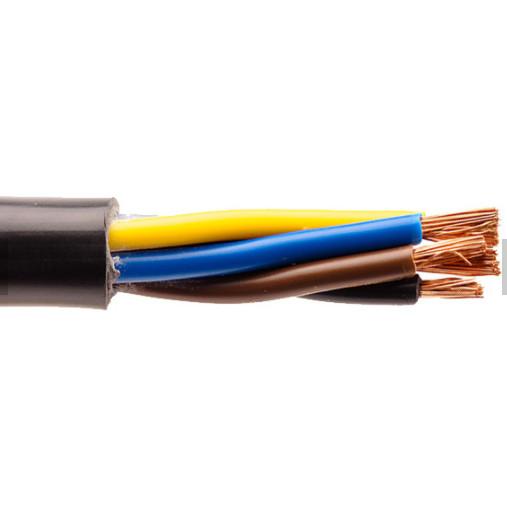

Low Voltage PVC Insulated Power Cable VVR Flexible Electrical Power Wire image
Brand Name :
Huanghe
Model Number :
XLPE Insulated Copper Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor Core :
Copper
Insulation Material :
Cross Linked Polyethylene (XLPE) PVC
Outer Sheath Material :
XLPE PVCＰＥ
Armoured Type :
armoured
Cross Section Area :
１ｍｍ２to 1000mm2
Standards :
IEC60502,
Colour :
Customized ｂｌａｃｋ
Application :
Construction, Power Station
Low Voltage PVC Insulated Power Cable VVR Flexible Electrical Power Wire
Rated voltage: U0/U 0.6/1KV
Test voltage: insulation thickness of more than 0.6 or more: 3000V, finished product testing: 3000V.
Good soft bending, good oil resistance, resistant to moisture,with a special has the ability of resistance to electromagnetic interference shieding of the cable.
Product specification
1. Conductor: conductor conform to the requirements of the soft GB3956 fifth or sisth kind.
2. Insulation: PVC/D type PVC insulated.
3. Color: insulation wire core color said, generally should be used under five core and color recognition.
4. Conductor structure: more than 5 core can use color recognition and digital recognition twisted with ropes to increase Tension stress,after this 5.can add pp tape, aluminium myra or non-woven belt as buffer.
6. Shielding: bare copper wire braided shielding.
7. Sheath: VC/ST5 hardy special jacket, black (RAL9005) or gray(RAL7001).
Low Voltage PVC Insulated VVR Flexible Electrical Power Cable
|
Low Voltage VVR Power Cable Voltage rating
|
No. x Nominal Cross Section of Conductor No. x mm2
|
||||
|
single core
|
two cores
|
three cores
|
Four cores
|
five core
|
|
|
0.6/1 kV
|
1×1.5 mm2
|
2×1.5 mm2
|
3×1.5 mm2
|
4×1.5 mm2
|
5×2.5 mm2
|
|
1×2.5 mm2
|
2×2.5 mm2
|
3×2.5 mm2
|
4×2.5 mm2
|
5×4 mm2
|
|
|
1×4 mm2
|
2×4 mm2
|
3×4 mm2
|
4×4 mm2
|
5×6 mm2
|
|
|
1×6 mm2
|
2×6 mm2
|
3x6mm2
|
4×6 mm2
|
5×10 mm2
|
|
|
1x 10 mm2
|
2x 10 mm2
|
3x 10 mm2
|
4×10 mm2
|
5×16 mm2
|
|
|
1×16 mm2
|
2×16 mm2
|
3x 16 mm2
|
4×16 mm2
|
5×25 mm2
|
|
|
1×25 mm2
|
2×25 mm2
|
3x 25 mm2
|
4×25 mm2
|
5×35 mm2
|
|
|
1×35 mm2
|
2×35 mm2
|
3x 35 mm2
|
4×35 mm2
|
5×50 mm2
|
|
|
1×50 mm2
|
2×50 mm2
|
3x 50 mm2
|
4×50 mm2
|
5×70 mm2
|
|
|
1×70 mm2
|
2×70 mm2
|
3x 70 mm2
|
4×70 mm2
|
5×95 mm2
|
|
|
1×95 mm2
|
2×95 mm2
|
3x 95 mm2
|
4×95 mm2
|
5×120 mm2
|
|
|
1×120 mm2
|
2×120 mm2
|
3x 120 mm2
|
4×120 mm2
|
5×150 mm2
|
|
|
1×150 mm2
|
2×150 mm2
|
3x 150 mm2
|
4×150 mm2
|
5×185 mm2
|
|
|
1×185 mm2
|
2×185 mm2
|
3x 185 mm2
|
4×185 mm2
|
5×240 mm2
|
|
|
1×240 mm2
|
|
3×240 mm2
|
4×240 mm2
|
5×300 mm2
|
|
|
1×300 mm2
|
|
3×300 mm2
|
4×300 mm2
|
|
|
It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.
We are China Low Voltage PVC Insulated Power Cable VVR Flexible Electrical Power Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
